UHLT1005A

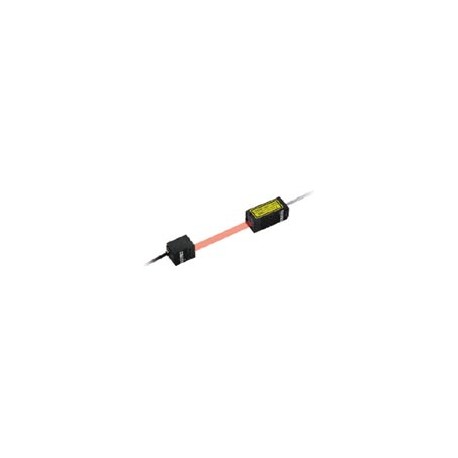

UHLT1005A HLT1005A HL-T1005A PANASONIC HL-T1 sensor heads, 5 mm type
$0.00USD
3084 auf Lager
Wichtige Spezifikationen
Artikel:Specifications
Typ:Sensing width 5 mm0.197 intype
Kabel:0.09mm23-core shielded cable with connector, 0.5 m1.640 ftlong
Gewicht:Emitter: 15 g approx.Receiver: 15 g approx.
Lieferanteninformation
PANASONIC
Produkte: 4316
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Artikel | Specifications |
| Typ | Sensing width 5 mm0.197 intype |
| Kabel | 0.09mm23-core shielded cable with connector, 0.5 m1.640 ftlong |
| Gewicht | Emitter: 15 g approx.Receiver: 15 g approx. |
| Details | Sensor head (Sensing width 5 mm0.197 intype) |
| Produkt | Ultra-compact Laser Collimated Beam Sensor |
| Material | Enclosure: PolyetherimideCase cover: PolycarbonateFront cover: Glass |
| Zubehör | MS-HLT1-1(Sensor head mounting bracket): One set of two brackets for both the emitter and the receiverCN-HLT1-1(Sensor head to controller connection cable): 1 cableLaser beam alignment sticker: 2 pcs.Label set (FDA regulations conformed type only): 1 set |
| Teilenummer | HL-T1005A |
| Produktname | Ultra-compact Laser Collimated Beam Sensor HL-T1 |
| Erfassungsbereich | ■■【In the case of(0 to 500 mm 0to 19.685 in)】■■Sensing width:ø1 mmø0.039 inMin. sensing object:ø8 micro mø0.315 milopaque objectRepeatability (During the state in which light is half blocked):4 micro m0.157 mil(Note：In case of an average sampling rate of 64 times.)Linear output resolution:4 micro m0.157 mil(Note) In case of an average sampling rate of 64 times.(Note)Value calculated with the linear output allowance factor (plus or minus 3 sigma) when connected to the controller included in the calculation of the detection width.(Note：This value was obtained by converting the range of linear output fluctuation (plus or minus 3 sigma) into a sensing width, assuming that the smallest sensing object blocks the beam at the approximate center of the beam diameter of ø1 mmø0.039 in.)■■【In the case of (500 to 2,000 mm19.685 to 78.74 in)】■■Sensing width:ø1 to ø2.5 mmø0.039 to ø0.098 inMin. sensing object:ø50 micro mø1.969 milopaque objectRepeatability (During the state in which light is half blocked): -Linear output resolution: -- |
| Produktnummer | HL-T1005A |
| Kabelverlängerung | Extension up to total 10 m32.808 ftis possible, with the optional cable. |
| Verschmutzungsgrad | 3 (industrial environment) |
| Emissionsindikator | Green LED (lights up during laser emission) |
| Anwendbarer Controller | HL-AC1, HL-AC1P |
| Isolationswiderstand | 100 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Spannungsfestigkeit | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Einhaltung der CE-Kennzeichnungsrichtlinie | EMC Directive, RoHS Directive |
| Störungsverhinderungsfunktion | Two units of sensors can be mounted close together. (When the controller interference prevention function is used) |
| Umweltbeständigkeit: Umgebungsfeuchtigkeit | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Umweltbeständigkeit: Stoßfestigkeit | 300 m/s2acceleration (30 G approx.) in X, Y and Z directions three times each |
| Umweltbeständigkeit: Umgebungsbeleuchtungsstärke | Incandescent light: 10,000 liter x or less at the light-receiving face |
| Umweltbeständigkeit: Umgebungstemperatur | 0 to +50 ℃+32 to +122 ℉(No dew condensation allowed), Storage: -25 to +65 ℃-13 to +149 ℉ |
| Umweltbeständigkeit: Vibrationsbeständigkeit | 10 to 500 Hz frequency, 1.5 mm0.059 indouble amplitude in X, Y and Z directions for two hours each |
| Emissionselement: FDA-konformer Typ | Red semiconductor laser Class II (FDA)(modulated, max. output: 0.35 mW, peak emission wavelength: 650 nm0.026 mil)(IEC / JIS: Class 1) |
| Emissionselement: IEC/JIS-konformer Typ | Red semiconductor laser Class 1 (IEC / JIS)(modulated, max. output: 0.35 mW, peak emission wavelength: 650 nm0.026 mil) |
Produktbeschreibung
HLT1 Series Analog Barrier Laser Emitter-Clevy, 5mm Beam Width, 500mm Range
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
