UHLC203FMK

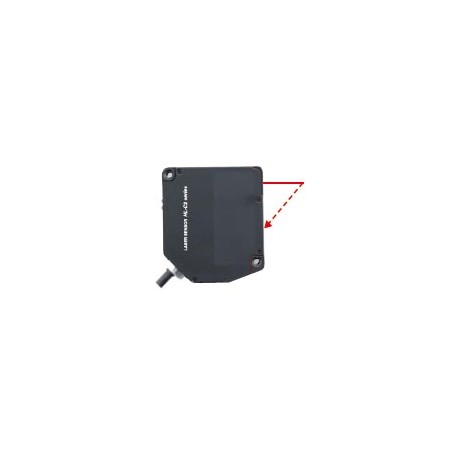

UHLC203FMK HL-C203F-MK PANASONIC Sensorhead HL-C2, Laserclass 2, 30±5mm, 0.025μm, Linetype, Export Control
$0.00USD
4218 auf Lager
Wichtige Spezifikationen
Artikel:Specifications
Kabel:Cabtyre cable, 0.5 m 1.640 ft long with connector
Gewicht:250 g approx. (including cable)
Details:Sensor head (Super-high precision)
Lieferanteninformation
PANASONIC
Produkte: 4316
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Artikel | Specifications |
| Kabel | Cabtyre cable, 0.5 m 1.640 ft long with connector |
| Gewicht | 250 g approx. (including cable) |
| Details | Sensor head (Super-high precision) |
| Produkt | Ultra High-speed High-precision Laser Displacement Sensor |
| Material | Enclosure: Die-cast aluminumCase cover: Die-cast aluminumFront cover: Glass |
| Zubehör | English warning label: 1 set [The FDA regulations conforming type includes a set of both the IEC label (written in English) and JIS label (written in Japanese)]. |
| Linearität | plus or minus 0.03 % F.S.(Note) Indicates error with respect to the ideal linear values for digital displacement output when standard objects were measured by our company. It may vary depending on the types of objects being measured. |
| Einrichtungsmodus | Diffuse reflectiveSpecular reflective |
| Teilenummer | HL-C203F-MK |
| Lichtquelle | Red semiconductor laser (Peak emission wavelength: 658 nm 0.026 mil)Class 2 (IEC / JIS), Class II (FDA)Max. output: 1 mW |
| Produktname | Ultra High-speed・High-precision Laser Displacement Sensor HL-C2 |
| Strahldurchmesser | 30 x 1,200 micro m 1.181 x 47.244 mil approx.(Note) This beam diameter is the size at the measurement center distance. These values were defined by using 1/e2 (13.5 %) of the center light intensity.If there is a slight leakage of light outside the normal spot diameter and if the periphery surrounding the sensing point has a higher reflectivity than the sensing point itself, then the results may be affected. |
| Produktnummer | HL-C203F-MK |
| Kabelverlängerung | Extension up to total 30 m 98.425 ft is possible, with optional cable. |
| Messbereich | Diffuse reflective: plus or minus 5 mm plus or minus 0.197 inSpecular reflective: plus or minus 4.6 mm plus or minus 0.181 in(Note) Measuring range at sampling periods of 20 micro s and 10 micro s is as follows.[Diffuse reflective]20 micro s: 0 to +5.0 mm 0 to +0.197 in10 micro s: +3.8 to +5.0 mm +0.150 to +0.197 in[Specular reflective]20 micro s: 0 to +4.6 mm 0 to +0.181 in10 micro s: +3.6 to +4.6 mm +0.142 to +0.181 in |
| Empfangselement | Linear image sensor |
| Indikator: Laseremission | Green LED (lights up during laser emission) |
| Indikator: Messbereich | Yellow LED(lights up when near the measurement center distance, blinks when within the measuring range, and lights out when outside of the measuring range.) |
| Abstand zwischen Messmittelpunkt | Diffuse reflective: 30 mm 1.181 inSpecular reflective: 26.4 mm 1.039 in |
| Temperatureigenschaften | 0.01 % F.S./degrees |
| Umweltbeständigkeit: Schutz | IP67 (IEC) (excluding the connector) |
| Auflösung [Durchschnittliche Anzahl der Abtastwerte] | 0.1 micro m 0.004 mil [256]0.025 micro m 0.001 mil [4,096](Note) The P-P value for the deviation in the digital measurement values at the measurement center range has been converted for the measurement center distance. |
| Anwendbare Vorschriften und Zertifizierungen | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), China RoHS, FDA Regulations, Korea’s radio regulations (Radio Wave Act KC) |
| Umweltbeständigkeit: Umgebungsfeuchtigkeit | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Umweltbeständigkeit: Stoßfestigkeit | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directions for three times each |
| Umweltbeständigkeit: Umgebungsbeleuchtungsstärke | Incandescent light: 3,000 liter x at the light-receiving face |
| Umweltbeständigkeit: Umgebungstemperatur | 0 to +45 degrees +32 to +113 degrees Fahrenheit (No dew condensation), Storage: -20 to +70 degrees -4 to +158 degrees Fahrenheit |
| Umweltbeständigkeit: Vibrationsbeständigkeit | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in amplitude in X,Y and Z directions for two hours each |
Produktbeschreibung
HLC2 laser sensor. Direct reflection sensor head spot linear 30 × 1,200 μm, class 2, detection range 30 ± 5 mm., resolution 0.025 μm
