UHLAC1

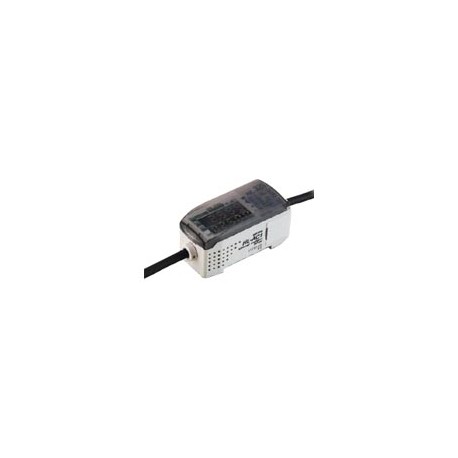

UHLAC1 HLAC1 HL-AC1 PANASONIC HL-T1 sensor controller, NPN, 12-24VDC
$0.00USD
3192 auf Lager
Wichtige Spezifikationen
Artikel:Specifications
Typ:NPN output
Gewicht:Net weight: 140 g approx.
Details:Controller (NPN output)
Lieferanteninformation
PANASONIC
Produkte: 4316
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Artikel | Specifications |
| Typ | NPN output |
| Gewicht | Net weight: 140 g approx. |
| Details | Controller (NPN output) |
| Produkt | Ultra-compact Laser Collimated Beam Sensor |
| Material | Enclosure: Polybutylene terephthalateTransparent cover: Polycarbonate |
| I/O-Kabel | 0.09 mm210-core composite cable, 2 m6.562 ftlong |
| Teilenummer | HL-AC1 |
| Reset-Eingang | 0 V connection: EffectiveOpen: Ineffective-Applied voltage: 30 V DC or less (leak current: 0.1 mA or less) |
| Produktname | Ultra-compact Laser Collimated Beam Sensor HL-T1 |
| Zeiteingang | 0 V connection: EffectiveOpen: Ineffective-Applied voltage: 30 V DC or less (leak current: 0.1 mA or less) |
| Linearer Ausgang | Current / voltage output switchable (Note)-During current output: 4 to 20 mA/F.S., Maximum load resistance: 300 Ohm-During voltage output: plus or minus 4 V/F.S., Output impedance 100 Ohm(In the monitor focus function, it can also be set at plus or minus 5 V, 0 to 5 V, etc.)(Note) Switching between current and voltage is accomplished by a switch on the bottom of the controller. |
| Hauptfunktionen | ・Measured value display・Setting value, light amount value resolution display・Standard received light setting・Automatic scaling・Scaling・Display reverse・ECO display・Display digits limitation・Sample hold・Peak hold・Bottom hold・Peak to peak hold・Self peak hold・Self bottom hold・Zero reset・Initial reset・ON-delay timer・OFF-delay timer・One-shot timer・Differentiation・Sensitivity selection・Threshold value direct setting・Positioning teaching・2-point teaching・Automatic teaching・Hysteresis width variability・Monitor focus・Non-measuring time setting・(A – B) calculation(Note：The calculation unit is necessary.)・(A + B) calculation(Note：The calculation unit is necessary.)・Mutual interference prevention (Note：The calculation unit is necessary.)・Laser deterioration detection・Key lock・Zero reset memory |
| Produktnummer | HL-AC1 |
| Versorgungsspannung | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Laser-AUS-Eingang | 0 V connection: Laser emission haltOpen: Laser emission-Applied voltage: 30 V DC or less (leak current: 0.1 mA or less) |
| Messzyklus | 150 micro s |
| Verschmutzungsgrad | 3 (industrial environment) |
| Null-Reset-Eingang | 0 V connection: Zero reset operatesOpen: Zero reset ineffective-Applied voltage: 30 V DC or less (leak current: 0.1 mA or less) |
| Aktueller Verbrauch | 190 mA or less (when connected to the sensor head) |
| I/O-Kabelverlängerung | Extension up to total 10 m32.808 ftis possible, with 0.09 mm2or more, cable.(Note) If the extension cable is longer than 10 m32.808 ft, then it will not qualify for CE marking. |
| Subdigitalanzeige | 5 digit yellow LED display[RUN mode: Either the resolution or laser beam reception amount will be displayed. THR mode: The threshold value will be displayed., Reverse mode: The display orientation will be reversed.] |
| Hauptdigitalanzeige | 5 digit red LED display[RUN mode: Either the measured value (mm) or the hold value will be displayed. Reverse mode: The display orientation will be reversed.] |
| Isolationswiderstand | 20 MOhm , or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Geeigneter Sensorkopf | HL-T1001A/T1001F, HL-T1005A/T1005F, HL-T1010A/T1010F |
| Spannungsfestigkeit | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Indikatoren: Aktivieren (AKTIVIEREN) | Green LED (lights up during normal operation) |
| Indikatoren: Beurteilungsergebnisse | HIGH: Orange LED (lights up when measured value > HIGH threshold value)PASS: Green LED (lights up when HIGH threshold value >= measured value >= LOW threshold value)LOW: Yellow LED (lights up when LOW threshold value > measured value) |
| Indikatoren: Nullpunkt-Reset (NULL) | Green LED (lights up when the zero reset function is enabled) |
| Einstellbare durchschnittliche Abtastrate | 1 / 2 / 4 / 8 / 16 / 32 / 64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096(Note) The judgment output and linear output and linear output response time is calculated by (Measuring cycle) x (Set average sampling rate + 1). |
| Einhaltung der CE-Kennzeichnungsrichtlinie | EMC Directive, RoHS Directive |
| Bewertungsergebnis (HOCH, BESTANDEN, NIEDRIG) | NPN open-collector transistor-Maximum sink current: 50 mA-Applied voltage: 30 V DC or less (between judgment output and 0 V)-Residual voltage: 1.2 V or less (at 50 mA sink current) |
| Indikatoren: Laser emittiert (LD EIN) | Green LED (lights up during laser emission) |
| Umweltbeständigkeit: Umgebungsfeuchtigkeit | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Umweltbeständigkeit: Stoßfestigkeit | 300 m/s2acceleration (30 G approx.) in X, Y and Z directions three times each |
| Linearer Ausgang: Temperaturcharakteristik | plus or minus 0.2 % F.S./℃(Note) These are the temperature characteristics of the linear output when the sensor head is connected. |
| Umweltbeständigkeit: Umgebungstemperatur | 0 to +50 ℃+32 to +122 ℉(No dew condensation allowed), Storage: -25 to +65 ℃-13 to +149 ℉ |
| Umweltbeständigkeit: Vibrationsbeständigkeit | 10 to 150 Hz frequency, 0.7 mm0.028 indouble amplitude in X, Y and Z directions for 80 min. |
| Beurteilungsausgänge (HOCH, BESTANDEN, NIEDRIG): Ausgabefunktion | HIGH: ON when measured value > HIGH threshold valuePASS: ON when HIGH threshold value >= measured value >= LOW threshold valueLOW: ON when LOW threshold value > measured value |
| Beurteilungsergebnisse (HOCH, BESTANDEN, NIEDRIG): Anzahl der Ergebnisse | HIGH / PASS / LOW 3 values output |
| Beurteilungsergebnisse (HOCH, BESTANDEN, NIEDRIG): Nutzungskategorie | DC-12 or DC-13 |
| Ausgänge (HOCH, BESTANDEN, NIEDRIG): Kurzschlussschutz | Incorporated |
Produktbeschreibung
HLT1 Series Controller, 12-24 VDC Power, NPN Digital Output, Selectable Analog Output between 4-20mA and ±4V
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
