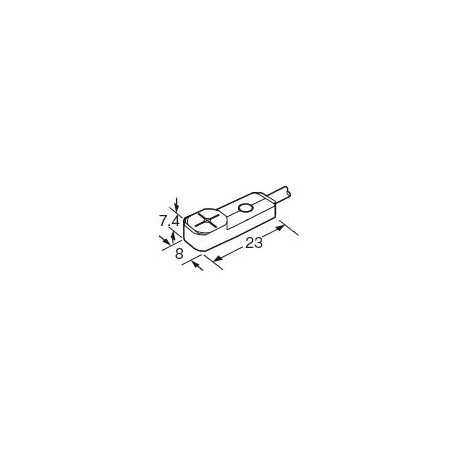

UGXF8A GX-F8A PANASONIC inductive proximity sensor, rectangular shape, 2,5mm, NO, NPN, cable 1m
$0.00USD
4055 auf Lager
Wichtige Spezifikationen
Artikel:Specifications
Kabel:0.15 mm23-core oil, heat and cold resistant cabtyre cable, 1 m3.281 ftlong
Ausgabe:NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current)
Details:NPN output
Lieferanteninformation
PANASONIC
Produkte: 4316
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Artikel | Specifications |
| Kabel | 0.15 mm23-core oil, heat and cold resistant cabtyre cable, 1 m3.281 ftlong |
| Ausgabe | NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current) |
| Details | NPN output |
| Produkt | Rectangular-shaped Inductive Proximity Sensor |
| Material | Enclosure: PBTIndicator part: Polyester |
| Hysterese | 20 % or less of operation distance(with standard sensing object) |
| Nettogewicht | 15 g approx. |
| Schutz | IP68 (IEC), IP68g (JEM)(Note) Panasonic Electric Works SUNX's IP68 test method1. Immerse at 0 m below 0 ℃+32 ℉water surface and leave for 30 min. Then, immerse at 0 m below +70 ℃+158 ℉water surface and leave for 30 min.2. Regard the heat shock test in 1 as one cycle and perform 20 cycles.3. Leave in water at a depth of 1 m3.281 ftin water for 500 hours.4. After tests 1 to 3, insulation resistance, voltage withstandability, current consumption, and sensing ranges must meet the standard values.(Note) If using the sensor in an environment where cutting oil droplets splatter, the sensor may be deteriorated due to added substances in the oil. |
| Teilenummer | GX-F8A |
| Produktname | Rectangular-shaped Inductive Proximity Sensor GX-F/H |
| Wiederholbarkeit | Along sensing axis, perpendicular to sensing axis: 0.04 mm0.002 inor less |
| Produktnummer | GX-F8A |
| Versorgungsspannung | 12 to 24 V DC +10/-15 % Ripple P-P 10 % or less |
| Kabelverlängerung | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
| Umgebungsfeuchtigkeit | 45 to 85 % RH, Storage: 35 to 95 % RH |
| Stoßfestigkeit | 10,000 m/s2acceleration (1,000 G approx.) in X, Y and Z directions three times each |
| Umgebungstemperatur | -25 to +70 ℃-13 to +158 ℉, Storage: - 40 to +85 ℃- 40 to +185 ※ |
| Aktueller Verbrauch | 15 mA or less |
| Betriebsanzeige | Orange LED(lights up when the output is ON) |
| Stabiler Erfassungsbereich | 0 to 2.1 mm0 to 0.083 in(Note) The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation. |
| Vibrationsfestigkeit | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (Max. 20 G) in X, Y and Z directions for two hours each |
| Isolationswiderstand | 50 MΩ , or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Maximale Betriebsdistanz | 2.5 mm0.098 inplus or minus 8 %(Note) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object. |
| Maximale Ansprechfrequenz | 500 Hz |
| Ausgabe: Ausgabeoperation | Normally open |
| Standard-Erfassungsobjekt | Iron sheet 15 × 15 × t 1 mm0.591 × 0.591 × t 0.039 in |
| Spannungsfestigkeit | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Ausgabe: Nutzungskategorie | DC-12 or DC-13 |
| Anwendbare Vorschriften und Zertifizierungen | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Variation des Erfassungsbereichs: Spannungscharakteristik | Within plus or minus 2 % for +10/-15 % fluctuation of the supply voltage |
| Variation des Erfassungsbereichs: Temperatureigenschaften | Over ambient temperature range -25 to +70 ℃ -13 to +158degrees Fahrenheit: Within plus or minus 8 % of sensing range at +23 ℃ +73 ℉ |
Produktbeschreibung
Rectangular proximity detector (7.4 x 8 x 23 mm), side detection, maximum operating distance 2.5 mm. normally open, NPN
