Vorrätig Top‑Produkt
ULP-150-24

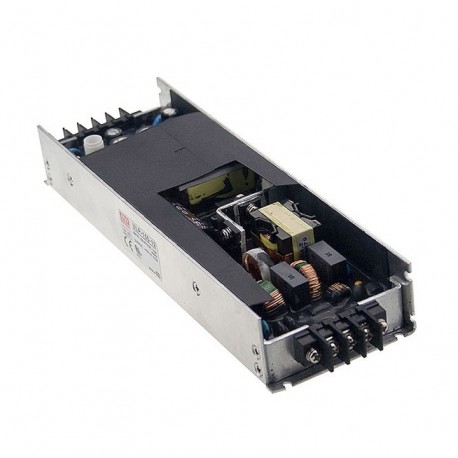

ULP-150-24 MEANWELL AC-DC Single output LED driver Constant Voltage (CV), Output 24VDC / 6.3A, U-bracket low..
$0.00USD
3838 auf Lager
Wichtige Spezifikationen
Name:ULP-150-24
Format:Open Format
Serie:ULP-150
Genehmigungen:EC
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name | ULP-150-24 |
| Format | Open Format |
| Serie | ULP-150 |
| Genehmigungen | EC |
| Leistung (W) | 151,20 |
| Subformato | Or |
| Breite (mm) | 67.40 |
| Höhe (mm) | 33.00 |
| AC-Eingangsleistung Max. | 295,00 |
| Mindesteingangsleistung (AC): Mindestens | 90,00 |
| Anwendungen | Lighting |
| Hersteller | MEAN WELL |
| Produktart | LED Driver |
| Isolation (V) | 3.750,00 |
| Ausgangsspannung | 24,00 |
| Spitzenleistung (W) | 151.2 |
| Eingangsanschluss | Screw-Type |
| Eingangsfrequenz | 50 Hz, 60 Hz |
| Lang/Hintergrund | 215.00 |
| Lange Beschreibung | LED driver.Specially designed to feed LED strips.Open format in the form of a U with a low profile.Input range90-295Vca47-63Hz.Output voltage24vdc.Output intensity6.3 A. Range of output current 0-6,3 according To the demands of the load.Power:151,2 W.Efficiency typical:93%.Input class I with grounding.Factor corrector, power>0,96to 230vac at full load.Operating temperature range of caseTcfrom-30ºCup+70ºC.Dimensions (Length x Width x Height):215 x 67,4 x 33mm.3 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with LED strips or LED bulbs, which are fed at constant voltage. Working mode constant voltage giving a fixed voltage of 24V if the load is powered at constant voltage and does not overcome the maximum output power.With housing in the format of semi-open type U. The series ULP-150 are power supplies with a correction factor of power, active and high efficiency. Suitable for LED lighting. Have a low profile only 33mm in height and their technology ZVS (zero voltage switching, switching with a voltage zero) allows to reduce the generation of heat with greater efficiency. Sourcesof class I with grounding. |
| Ausgangsanschluss | Screw-Type |
| Art des Eintrags CA | Single-phase |
| Garantie (Jahre) | 3,00 |
| Ursprungsland | China |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
LED driver.
Produktdokumente
Datenblatt
Technische Spezifikationen und Leistungsdaten
Benutzerhandbuch
Installations- und Betriebsanleitung
