UFX311BP

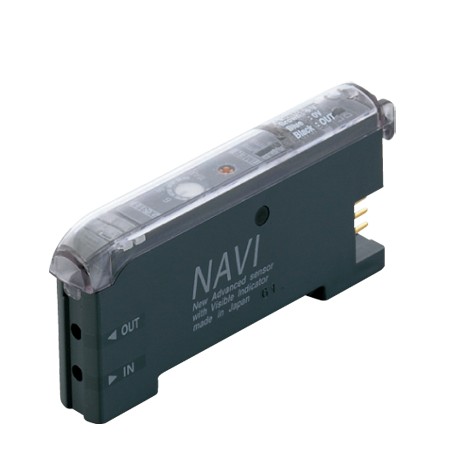

UFX311BP FX311BP FX-311BP PANASONIC Fiber amplifier, blue LED, PNP, 12-turn potentiometer, connector type
$0.00USD
3006 auf Lager
Wichtige Spezifikationen
Artikel:Specifications
Ausgabe:PNP open-collector transistor• Maximum source current: 100 mA(50 mA, if five, or more, amplifiers are connected in cascade)• Applied voltage: 30 V DC or less (between output and +V)• Residual voltage: 1.5 V or less[at 100 mA sink current (50 mA, if five, or more, amplifiers are connected in cascade)]
Gewicht:Net weight: 15 g approx., Gross weight: 20 g approx.
Details:PNP output
Lieferanteninformation
PANASONIC
Produkte: 4316
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Artikel | Specifications |
| Ausgabe | PNP open-collector transistor• Maximum source current: 100 mA(50 mA, if five, or more, amplifiers are connected in cascade)• Applied voltage: 30 V DC or less (between output and +V)• Residual voltage: 1.5 V or less[at 100 mA sink current (50 mA, if five, or more, amplifiers are connected in cascade)] |
| Gewicht | Net weight: 15 g approx., Gross weight: 20 g approx. |
| Details | PNP output |
| Produkt | Manually Set Fiber Sensor |
| Material | Enclosure: Heat-resistant ABS, Case cover: Polycarbonate |
| Teilenummer | FX-311BP |
| Kabellänge | Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
| Produktname | Manually Set Fiber Sensor FX-311 |
| Ansprechzeit | 150 μs or less (FAST), 250 μs or less (STD), 2 ms or less (LONG) selectable with selection switch |
| Produktnummer | FX-311BP |
| Versorgungsspannung | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Timerfunktion | Incorporated with OFF-delay timer, selectable either effective (approx. 10 ms or 40 ms) or ineffective |
| Umgebungsfeuchtigkeit | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Stoßfestigkeit | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions for five times each |
| Verbindungsmethode | Connector(Note):The cable for amplifier connection is not supplied as an accessory. Make sure to use the optional quick-connection cable given below.Main cable (3-core): CN-73-C1 (cable length 1 m 3.281 ft), CN-73-C2 (cable length 2 m 6.562 ft), CN-73-C5 (cable length 5 m 16.404 ft)Sub cable (1-core): CN-71-C1 (cable length 1 m 3.281 ft), CN-71-C2 (cable length 2 m 6.562 ft), CN-71-C5 (cable length 5 m 16.404 ft) |
| Stromverbrauch | 840 mW or less (Current consumption 35 mA or less at 24 V supply voltage) |
| Umgebungsbeleuchtungsstärke | Incandescent light: 3,000 ℓx at the light-receiving face |
| Umgebungstemperatur | -10 to +55 ℃ -14 to +131 ℉(If 4 to 7 units are connected in cascade: -10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are connected in cascade: -10 to +45 ℃ +14 to +113 ℉) (No dew condensation or icing allowed)Storage: -20 to +70 ℃ -4 to +158 ℉ |
| Betriebsanzeige | Orange LED (lights up when the output is ON) |
| Stabilitätsindikator | Green LED (lights up under stable light received condition or stable dark condition) |
| Empfindlichkeitsregler | 12-turn potentiometer with indicator (Pointer part: red backlight)(Note):The red backlight of the pointer part lights up more brightly when the power is turned ON and when the sensitivity is adjusted. |
| Vibrationsfestigkeit | 10 to 150 Hz frequency, 0.75 mm 0.03 in amplitude in X, Y and Z directions for two hours each |
| Isolationswiderstand | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure(Note):The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only. |
| Ausgabe: Ausgabeoperation | Selectable either Light-ON or Dark-ON, with selection switch |
| Spannungsfestigkeit | 1,000 V AC for one min. between all supply terminals connected together and enclosure(Note):The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only. |
| Emitter (moduliert) | Blue LED |
| Ausgang: Kurzschlussschutz | Incorporated |
| Automatische Störungsunterdrückungsfunktion | Incorporated (Up to 4 sets of fiber heads can be mounted close together.)(Note):When the power supply is switched on, the emission timing are automatically set for interference prevention. |
| Emissionselement (moduliert): Emissionswellenlänge des Maximums | 470 nm 0.019 mil |
Produktbeschreibung
FX-311 Amplifier F. Optics, blue led, PNP, 12-24 VDC, connector
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
