UFX101CC2

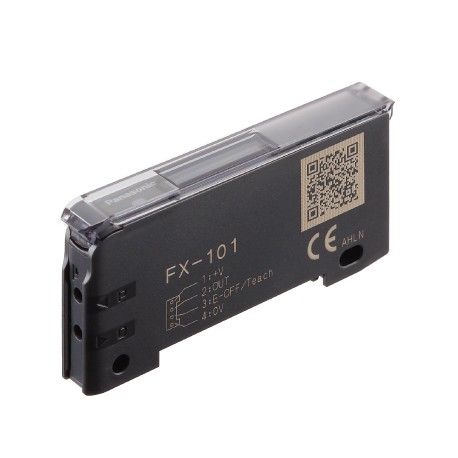

UFX101CC2 FX101CC2 FX-101-CC2 PANASONIC Fiber amplifier, Standard type, NPN, display, connector type, 2m cab..
$0.00USD
4205 auf Lager
Wichtige Spezifikationen
Artikel:Specifications
Ausgabe:NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 1.5 V or less (at 100 mA sink current)
Gewicht:Net weight: 15 g approx.Gross weight: 75 g approx.
Details:Standard type [Cable set]
Lieferanteninformation
PANASONIC
Produkte: 4316
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Artikel | Specifications |
| Ausgabe | NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 1.5 V or less (at 100 mA sink current) |
| Gewicht | Net weight: 15 g approx.Gross weight: 75 g approx. |
| Details | Standard type [Cable set] |
| Produkt | Digital Fiber Sensor |
| Material | Enclosure: PolycarbonateKey switch: PolycarbonateFiber lock lever: PBT |
| Zubehör | FC-FX-1(Protection cover): 1 pc. (Note)CN-14A-C2 (Connector attached cable, 2 m6.562 ftlong): 1 pc.(Note) Protection cover FC-FX-1 has been attached from the production at July, 2011. |
| Teilenummer | FX-101-CC2 |
| Kabellänge | Total length up to 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
| Produktname | Digital Fiber Sensor FX-100 |
| Ansprechzeit | Emission frequency 0: 250 micro s or less (factory default setting)Emission frequency 1: 450 micro s or lessEmission frequency 2: 500 micro s or lessEmission frequency 3: 600 micro s or less |
| Externer Eingang | NPN non-contact input- Signal conditionHigh: +8 V to +V DC or OpenLow: 0 to +2 V DC(Source current 0.5 mA or less)- Input impedance: 10 kOhm approx. |
| Produktnummer | FX-101-CC2 |
| Versorgungsspannung | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Timerfunktion | ON-delay / OFF-delay timer, switchable either effective or ineffective[Timer period: 1 ms, 5 ms, 10 ms, 20 ms, 40 ms, 50 ms, 100 ms, 500 ms, 1,000 ms] |
| Digitalanzeige | 4 digits (green) + 4 digits (red) LCD display |
| Umgebungsfeuchtigkeit | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Stoßfestigkeit | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each |
| Verbindungsmethode | Connector(Note) Connector attached cable CN-14A-C2 is not attached to the models that have no ''-CC2'' at the end of the model Nos.Make sure to use the optional connector attached cable CN-14A(-R)-Cx or the connector CN-14A, or a connector manufactured by J.S.T. Mfg., Ltd.(contact: SPHD-001T-P0.5, housing: PAP-04V-S). |
| Stromverbrauch | Normal operation: 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage)ECO mode: 600 mW or less (Current consumption 25 mA or less at 24 V supply voltage) |
| Umgebungsbeleuchtungsstärke | Incandescent light: 3,000 lx or less at the light-receiving face |
| Umgebungstemperatur | –10 to +55 ℃+14 to +131℉(If 4 to 7 units are mounted close together: –10 to +50 ℃+14 to +122℉, if 8 to 16 units are mounted close together: –10 to +45 ℃+14 to +113℉) (No dew condensation or icing allowed),Storage: –20 to +70 ℃–4 to +158℉ |
| Betriebsanzeige | Orange LED (lights up when the output is ON) |
| Empfindlichkeitseinstellung | 2-point teaching / Limit teaching / Full-auto teaching |
| Vibrationsfestigkeit | 10 to 150 Hz frequency, 0.75 mm0.030 indouble amplitude in X, Y and Z directions for two hours each |
| Isolationswiderstand | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure(Note) The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only. |
| Ausgabe: Ausgabeoperation | Selectable either Light-ON or Dark-ON, at SET mode |
| Spannungsfestigkeit | 1,000 V AC for one min. between all supply terminals connected together and enclosure(Note) The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only. |
| Emitter (moduliert) | Red LED (Peak emission wavelength: 643 nm0.025 mil) |
| Einhaltung der CE-Kennzeichnungsrichtlinie | EMC Directive, RoHS Directive |
| Ausgang: Kurzschlussschutz | Incorporated |
| Funktion zur Einstellung der Emissionsmenge | 3-level + Auto setting (from production in December 2007) |
| Störungsverhinderungsfunktion | Incorporated Emission frequency selection method (Functions at emission frequency 1, 2 or 3)(Note) When using the interference prevention function, set the emission frequencies for the amplifiers to be covered by the interference prevention function to different frequency values.However, the interference prevention function does not operate at emission frequency 0 (factory default setting). |
| Feineinstellungsfunktion für Empfindlichkeit | Incorporated |
Produktbeschreibung
FX100 Amplifier F. Optical, NPN output, includes cable CN14AC2
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
