UEXZ11AP

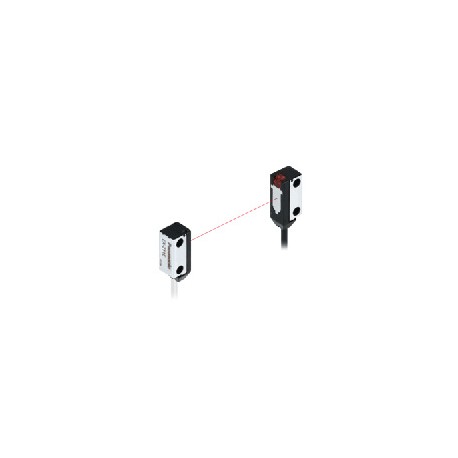

UEXZ11AP EX-Z11A-P PANASONIC Thru beam, 50mm, Side sensing, Light-ON, PNP, cable 2m
$0.00USD
4570 auf Lager
Wichtige Spezifikationen
Artikel:Specifications
Kabel:0.1 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlongNote:The bending-resistant cable type has a 0.1 mm23-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable, 2 m6.562 ftlong.
Ausgabe:PNP open-collector transistor- Maximum source current: 20 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 1.5 V or less (at 20 mA source current)
Bemerkung:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃73 ℉.
Lieferanteninformation
PANASONIC
Produkte: 4316
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Artikel | Specifications |
| Kabel | 0.1 mm23-core (emitter: 2-core) cabtyre cable, 2 m6.562 ftlongNote:The bending-resistant cable type has a 0.1 mm23-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable, 2 m6.562 ftlong. |
| Ausgabe | PNP open-collector transistor- Maximum source current: 20 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 1.5 V or less (at 20 mA source current) |
| Bemerkung | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃73 ℉. |
| Gewicht | Net weight (each emitter and receiver) : 15 g approx.Gross weight: 35 g approx. |
| Details | Thru-beam [Side sensing] |
| Produkt | Ultra-minute Photoelectric Sensor |
| Material | Enclosure: PBTLens: PolycarbonateMetallic part: Stainless steel (SUS304)(SUS301 for rear side of front sensing type) |
| Zubehör | M2 mounting screws: 1 set (front sensing type: 6 mm0.236 inin length; side sensing type: 10 mm0.394 inin length) |
| Erdung | Floating |
| Schutz | IP67 (IEC) |
| Teilenummer | EX-Z11A-P |
| Produktname | Ultra-minute Photoelectric Sensor EX-Z |
| Ansprechzeit | 0.5 ms or less |
| Erfassungsbereich | 50 mm1.969 in |
| Produktnummer | EX-Z11A-P |
| Versorgungsspannung | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Kabelverlängerung | Extension up to total 50 m164 ftis possible with 0.3 mm2, or more, cable (both emitter and receiver) . |
| Umgebungsfeuchtigkeit | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Emitterelement | Red LED (Peak emission wavelength: 650 nm0.026 mil, modulated) |
| Ausgabeoperation | Light-ON |
| Stoßfestigkeit | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions for three times each |
| Umgebungsbeleuchtungsstärke | Incandescent light: 5,000 ℓx at the light-receiving face |
| Umgebungstemperatur | -10 to +55 ℃14 to +131 ℉(No dew condensation or icing allowed), Storage: -30 to +70 ℃-22 to +158 ℉ |
| Aktueller Verbrauch | Emitter: 10 mA or lessReceiver: 10 mA or less |
| Mindestens Erfassungsobjekt | ø0.3 mmø0.012 inopaque object (Completely beam interrupted object)(Setting distance between emitter and receiver: 50 mm1.969 in) |
| Betriebsanzeige | Orange LED (Lights up when the sensing output is ON) |
| Stabilitätsindikator | Green LED (Lights up under the stable light received condition or the stable dark condition) |
| Vibrationsfestigkeit | 10 to 500 Hz frequency, 3 mm0.118 inamplitude in X, Y and Z directions for two hours each |
| Isolationswiderstand | 20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Spannungsfestigkeit | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Ausgang: Kurzschlussschutz | Incorporated |
| Anwendbare Vorschriften und Zertifizierungen | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Certification |
| Wiederholgenauigkeit (senkrecht zur Messachse) | 0.02 mm0.001 inor less |
Produktbeschreibung
Ultra-miniature and ultra-compact photoelectric sensor. Barrier, 50mm reach, side detection, light operation, PNP, 2m cable, dimensions 6.5 x 12 x 5.5
