UEX28A

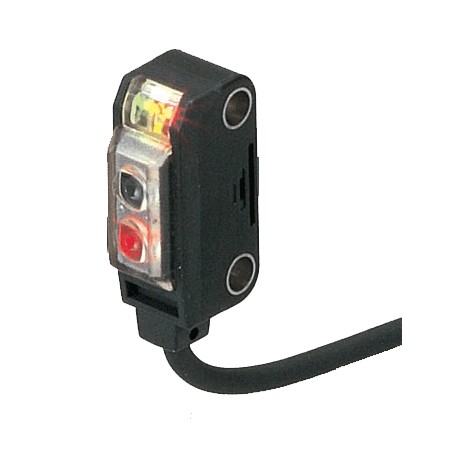

UEX28A EX28A EX-28A PANASONIC UZB681, Diffus reflective type, 115mm, Light-ON, NPN, cable 2m
$0.00USD
3017 auf Lager
Wichtige Spezifikationen
Artikel:Specifications
Kabel:0.1 mm2 3-core cabtyre cable, 2 m 6.562 ft long
Ausgabe:NPN open-collector transistor- Maximum sink current: 50 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Gewicht:Net weight: 20 g approxGross weight: 45 g approx
Lieferanteninformation
PANASONIC
Produkte: 4316
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Artikel | Specifications |
| Kabel | 0.1 mm2 3-core cabtyre cable, 2 m 6.562 ft long |
| Ausgabe | NPN open-collector transistor- Maximum sink current: 50 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) |
| Gewicht | Net weight: 20 g approxGross weight: 45 g approx |
| Details | Narrow-view reflective(Long distance spot beam type)[Side sensing] |
| Produkt | Ultra-compact Photoelectric Sensor |
| Material | Enclosure: Polyethylene terephthalateLens: Polyalylate |
| Zubehör | Adjusting screwdriver: 1 pc. |
| Hysterese | 15 % or less of operation distance [100 x 100 mm 3.937 x 3.937 in with white non-glossy paper] |
| Schutz | IP67 (IEC) |
| Teilenummer | EX-28A |
| Produktname | Ultra-compact Photoelectric Sensor EX-20 Ver.2 |
| Ansprechzeit | 0.5 ms or less |
| Erfassungsbereich | 45 to 115 mm 1.772 to 4.528 in with white non-glossy paper (100 x 100 mm 3.937 x 3.937 in), spot diameter dia. 5 mm dia. 0.197 in with setting distance 80 mm 3.150 in |
| Produktnummer | EX-28A |
| Erfassungsobjekt | Opaque, translucent or transparent object (Note) (Min. dia. 1 mm dia. 0.039 in copper wire at setting distance 80 mm 3.150 in)(Note) Make sure to confirm detection with an actual sensor before use. |
| Versorgungsspannung | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Kabelverlängerung | Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable. |
| Umgebungsfeuchtigkeit | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Emitterelement | Red LED (modulated) |
| Stoßfestigkeit | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Umgebungsbeleuchtungsstärke | Incandescent light: 3,000 lx or less at the light-receiving face |
| Umgebungstemperatur | -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit |
| Aktueller Verbrauch | 15 mA or less |
| Betriebsanzeige | Orange LED (lights up when the output is ON) |
| Stabilitätsindikator | Green LED (lights up under stable light received condition or stable dark condition) |
| Empfindlichkeitsregler | Continuously variable adjuster |
| Vibrationsfestigkeit | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each |
| Isolationswiderstand | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Betriebsmodusschalter | - |
| Spannungsfestigkeit | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Ausgabe: Nutzungskategorie | DC-12 or DC-13 |
| Einhaltung der CE-Kennzeichnungsrichtlinie | EMC Directive, RoHS Directive |
| Ausgang: Kurzschlussschutz | Incorporated |
| Emissionselement: Wellenlänge des Emissionsmaximums | 650 nm 0.026 mil |
| Wiederholgenauigkeit (senkrecht zur Messachse) | 0.3 mm 0.012 in or less |
Produktbeschreibung
Ultra-compact photoelectric sensor, narrow beam reflection, side detection, 115 mm, NPN, light operation, 12-24 VDC
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
