UEX21B

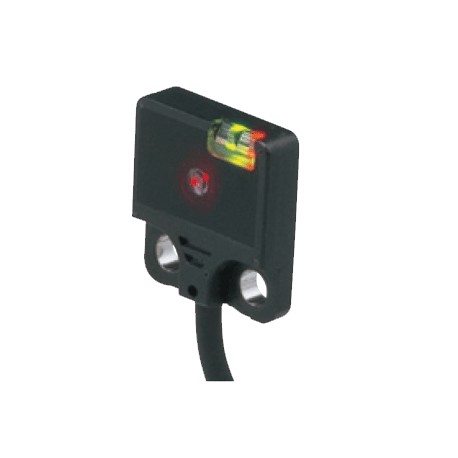

UEX21B EX21B EX-21B PANASONIC UZB502, Thru beam, 1m, Dark-On, NPN, cable 2m
$0.00USD
4827 auf Lager
Wichtige Spezifikationen
Artikel:Specifications
Kabel:0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long
Ausgabe:NPN open-collector transistor- Maximum sink current: 50 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Gewicht:Net weight (each emitter and receiver): 20 g approxGross weight: 60 g approx
Lieferanteninformation
PANASONIC
Produkte: 4316
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Artikel | Specifications |
| Kabel | 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long |
| Ausgabe | NPN open-collector transistor- Maximum sink current: 50 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) |
| Gewicht | Net weight (each emitter and receiver): 20 g approxGross weight: 60 g approx |
| Details | Thru-beam[Front sensing] |
| Produkt | Ultra-compact Photoelectric Sensor |
| Material | Enclosure: Polyethylene terephthalateLens: Polyalylate |
| Zubehör | - |
| Hysterese | - |
| Schutz | IP67 (IEC) |
| Teilenummer | EX-21B |
| Produktname | Ultra-compact Photoelectric Sensor EX-20 Ver.2 |
| Ansprechzeit | 0.5 ms or less |
| Erfassungsbereich | 1 m 3.281 ft |
| Produktnummer | EX-21B |
| Erfassungsobjekt | Min. dia. 2.6 mm dia. 0.102 in opaque object (Setting distance between emitter and receiver: 1 m 3.281 ft) |
| Versorgungsspannung | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Kabelverlängerung | Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable (both emitter and receiver). |
| Umgebungsfeuchtigkeit | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Emitterelement | Red LED (modulated) |
| Stoßfestigkeit | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Umgebungsbeleuchtungsstärke | Incandescent light: 3,000 lx or less at the light-receiving face |
| Umgebungstemperatur | -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit |
| Aktueller Verbrauch | Emitter: 10 mA or lessReceiver: 10 mA or less |
| Betriebsanzeige | Orange LED (lights up when the output is ON) (located on the receiver) |
| Stabilitätsindikator | Green LED (lights up under stable light received condition or stable dark condition), located on the receiver |
| Empfindlichkeitsregler | - |
| Vibrationsfestigkeit | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (20 G max.) in X, Y and Z directions for two hours each |
| Isolationswiderstand | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Betriebsmodusschalter | - |
| Spannungsfestigkeit | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Ausgabe: Nutzungskategorie | DC-12 or DC-13 |
| Einhaltung der CE-Kennzeichnungsrichtlinie | EMC Directive, RoHS Directive |
| Ausgang: Kurzschlussschutz | Incorporated |
| Emissionselement: Wellenlänge des Emissionsmaximums | 640 nm 0.025 mil |
| Wiederholgenauigkeit (senkrecht zur Messachse) | 0.05 mm 0.002 in or less |
Produktbeschreibung
Ultra-compact photoelectric sensor, barrier, front detection, 1m, NPN, operation in darkness, 12-24 VDC
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
