Vorrätig Top‑Produkt
UDP102MP

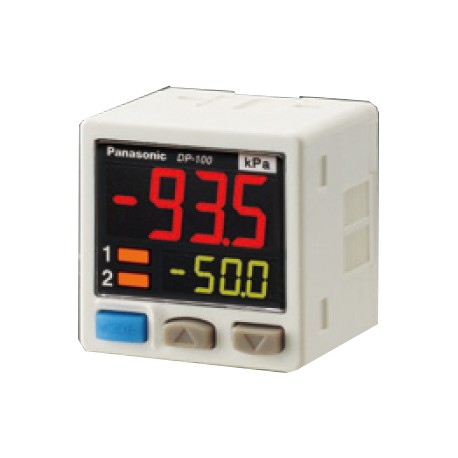

UDP102MP DP-102-M-P PANASONIC Pressure sensor, -1 to 10bar, PNP, pressure connector short M5 female thread, ..
$0.00USD
3324 auf Lager
Wichtige Spezifikationen
Artikel:Specifications
Gewicht:Net weight: 30 g approx., Gross weight: 120 g approx.
Details:Short pressure port type
Anzeige:4 digits + 4 digits 3-color LCD display(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation)
Lieferanteninformation
PANASONIC
Produkte: 4316
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Artikel | Specifications |
| Gewicht | Net weight: 30 g approx., Gross weight: 120 g approx. |
| Details | Short pressure port type |
| Anzeige | 4 digits + 4 digits 3-color LCD display(Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
| Produkt | Dual Display Digital Pressure Sensor [For Gas] |
| Material | Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber |
| Indikator | Orange LED(Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
| Schutz | IP40 (IEC) |
| Zubehör | CN-14A-C2 (Connector attached cable 2 m6.562 ft): 1pc. (excluding M8 plug-in connector type) |
| Teilenummer | DP-102-M-P |
| Kabellänge | Total length up to 100 m328.084 ft(less than 30 m98.425 ftwhen conforming to CE marking) is possible with 0.3 mm2, or more, cable |
| Produktname | Dual Display Digital Pressure Sensor [For Gas] DP-100 |
| Externer Eingang | - |
| Produktnummer | DP-102-M-P |
| Versorgungsspannung | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Umgebungsfeuchtigkeit | 35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH |
| Geeignete Flüssigkeit | Non-corrosive gas |
| Stoßfestigkeit | 100 m/s2acceleration (10 G approx.) in X, Y and Z directions three times each |
| Druckart | Gauge pressure |
| Verbindungsmethode | Connector |
| Stromverbrauch | Normal operation :720 mW or less (Current consumption 30 mA or less at 24 V supply voltage)ECO mode :480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage)360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
| Vergleichsausgabe | <PNP output>PNP open-collector transistor- Maximum source current : 100 mA- Applied voltage : 30 V DC or less (between comparative output and +V)- Residual voltage : 2 V or less (at 100 mA source current) |
| Einstelldruckbereich | -0.101 to +1.010 MPa-101 to +1,010 kPa-1.03 to +10.30 kgf/cm2-1.01 to +10.10 bar-14.6 to +146.4 psi |
| Umgebungstemperatur | -10 to +50 ℃+14 to +122 ℉, Storage : -10 to +60 ℃+14 to +140 ℉ |
| Nenndruckbereich | -0.100 to +1.000 MPa |
| Vibrationsfestigkeit | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each(when panel is mounted: 10 to 150 Hz frequency, 0.75 mm0.030 indouble amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
| Analoger Stromausgang | - |
| Analoger Spannungsausgang | - |
| Isolationswiderstand | 50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure |
| Spannungsfestigkeit | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Druckbeständigkeit | 1.5 MPa |
| Temperaturcharakteristik | Within ±1 % F.S.(at +20 ℃+68 ℉) |
| Vergleichsausgabe: Hysterese | Minimum 1 digit (variable)(however, 2 digits when using psi unit) |
| Vergleichsausgabe: Ausgabemodi | EASY mode / Hysteresis mode / Window comparator mode |
| Vergleichsergebnis: Wiederholbarkeit | ±0.2 % F.S.(within ±2 digits) |
| Vergleichsausgabe: Reaktionszeit | 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation |
| Anzeige: Anzeigbarer Druckbereich | -0.101 to +1.010 MPa-101 to +1,010 kPa-1.03 to +10.30 kgf/cm2-1.01 to +10.10 bar-14.6 to +146.4 psi |
| Vergleichsausgabe: Ausgabeoperation | NO / NC (selectable by key operation) |
| Einhaltung gesetzlicher Bestimmungen und Zertifizierung | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Vergleichsausgang: Kurzschlussschutz | Incorporated |
Produktbeschreibung
DP100 Series Dual Digital Pressure Controller, Flat Model, Standard, -0.1 to 1MPa, PNP. Port M5.
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
