UCX493

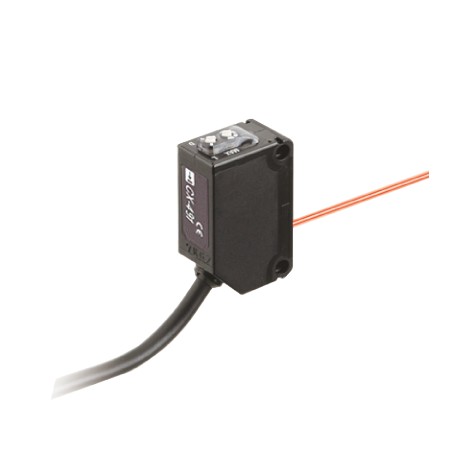

UCX493 CX493 CX-493 PANASONIC retroreflective type, 5m, NPN, cable 2m
$0.00USD
4234 auf Lager
Wichtige Spezifikationen
Artikel:Specifications
Kabel:0.2 mm23-core cabtyre cable, 2 m6.562 ftlong
Ausgabe:NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Gewicht:Net weight: 50 g approx.Gross weight: 80 g approx.
Lieferanteninformation
PANASONIC
Produkte: 4316
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Artikel | Specifications |
| Kabel | 0.2 mm23-core cabtyre cable, 2 m6.562 ftlong |
| Ausgabe | NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current) |
| Gewicht | Net weight: 50 g approx.Gross weight: 80 g approx. |
| Details | Retroreflective(Long sensing range) |
| Produkt | Compact Photoelectric Sensor |
| Material | Enclosure: PBT (polybutylene terephthalate)Lens: acrylicIndicator cover: acrylic |
| Zubehör | RF-230 (Reflector): 1 pc. |
| Hysterese | - |
| Schutz | IP67 (IEC) |
| Teilenummer | CX-493 |
| Produktname | Compact Photoelectric Sensor CX-400 Ver.2 |
| Ansprechzeit | 1 ms or less |
| Erfassungsbereich | 5 m16.404 ft(Note) The sensing range and the sensing object of the retroreflective type sensor are specifi ed for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor. |
| Produktnummer | CX-493 |
| Erfassungsobjekt | Ø50 mmØ1.969 inor more opaque or translucent object(Note) The sensing range and the sensing object of the retroreflective type sensor are specifi ed for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor.(Note) Make sure to confirm detection with an actual sensor before use. |
| Versorgungsspannung | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Kabelverlängerung | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
| Betriebsanzeige | Orange LED(lights up when the output is ON)(incorporated on the receiver for thru-beam type) |
| Umgebungsfeuchtigkeit | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Stoßfestigkeit | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Umgebungsbeleuchtungsstärke | Incandescent light: 3,000 lx or less at the light-receiving face |
| Umgebungstemperatur | - 25 to +55℃-13 to +131℃ ℉(No dew condensation or icing allowed ), Storage: -30 to +70℃-22 to +158℃ ℉ |
| Aktueller Verbrauch | 10 mA or less |
| Stabilitätsindikator | Green LED(lights up under stable light received condition or stable dark condition)(incorporated on the receiver for thru-beam type) |
| Empfindlichkeitsregler | Continuously variable adjuster(incorporated on the receiver for thru-beam type) |
| Vibrationsfestigkeit | 10 to 500 Hz frequency, 1.5 mm0.059 inamplitude (10 G max.) in X, Y and Z directions for two hours each |
| Isolationswiderstand | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Ausgabe: Ausgabeoperation | Switchable either Light-ON or Dark-ON |
| Spannungsfestigkeit | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Emitter (moduliert) | Red LED |
| Einhaltung der CE-Kennzeichnungsrichtlinie | EMC Directive, RoHS Directive |
| Ausgang: Kurzschlussschutz | Incorporated |
| Automatische Störungsunterdrückungsfunktion | Incorporated(Two units of sensors can be mounted close together.) |
| Wiederholgenauigkeit (senkrecht zur Messachse) | 0.5 mm0.020 inor less |
| Emissionselement (moduliert): Emissionswellenlänge des Maximums | 650 nm0.026 mil |
Produktbeschreibung
Compact photoelectric sensor, reflection on mirror, NOT polarized 5m, NPN, 2m cable
