Vorrätig Top‑Produkt
TDR-960-24

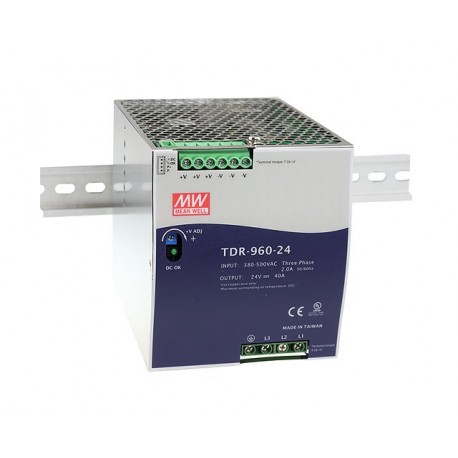

TDR-960-24 MEANWELL AC-DC Industrial 3-phase DIN rail power supply, Output 24VDC / 40A, metal case, 2 phase ..
$223.78USD
80 auf Lager
Wichtige Spezifikationen
Lüfter:Yes
Name:TDR-960-24
Aktie:Yes
Alarm:Output OK
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Lüfter | Yes |
| Name | TDR-960-24 |
| Aktie | Yes |
| Alarm | Output OK |
| Format | Din Rail |
| Serie | TDR-960 |
| Genehmigungen | EC, EAC, UL |
| Leistung (W) | 960,00 |
| Subformato | Narrow |
| Breite (mm) | 110.00 |
| Höhe (mm) | 125.20 |
| AC-Eingangsleistung Max. | 550,00 |
| Mindesteingangsleistung (AC): Mindestens | 340,00 |
| Anwendungen | Industrial, Telecommunications |
| Hersteller | MEAN WELL |
| Produktart | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Ausgangsspannung | 24,00 |
| Spitzenleistung (W) | Nine hundred sixty |
| Eingangsanschluss | Screw-Type |
| Eingangsfrequenz | 50 Hz, 60 Hz |
| Lang/Hintergrund | 150.00 |
| Lange Beschreibung | Switch mode Power supply three-Phase.Format to install on a Din Rail.Input range three-Phase340-550Vca47-63Hz. Can be run in two phases.Output voltage24vdc.(Adjustable with potentiometer 24-28Vcc).Output intensity:40A.Range of output current 0-40A according to demand load.Power:960W.Factor Corrector, Power>0,86.Alarm output voltage to the correct DC-Ok.Paralelizable up to 4 units.Efficiency:94%.Working temperature: from-30up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Width x Height x depth):110 x 125,2 x 150mm.3 years of warranty.Manufacturer: MEANWELL.The series TDR are power supplies DIN rail three-phase, with metallic casing.With wide input range from 340-550Vca have a very compact size, to 85.5 mm for the TDR-480 or so only 110 mm for the TDR-960.Models are with high efficiency of up to 94,5%, and PFC function is active. Can be installed on DIN rail TS-35 / 7,5 or 15.Among its functionalities we have limiting circuit of constant current signal through relay DC OK or function of load distribution in the models of 960W. |
| Ausgangsanschluss | Screw-Type |
| Art des Eintrags CA | Three-phase |
| Garantie (Jahre) | 3,00 |
| Ursprungsland | Taiwan |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
Switch mode Power supply three-Phase.
Produktdokumente
Datenblatt
Technische Spezifikationen und Leistungsdaten
Benutzerhandbuch
Installations- und Betriebsanleitung
