SPV-150-48

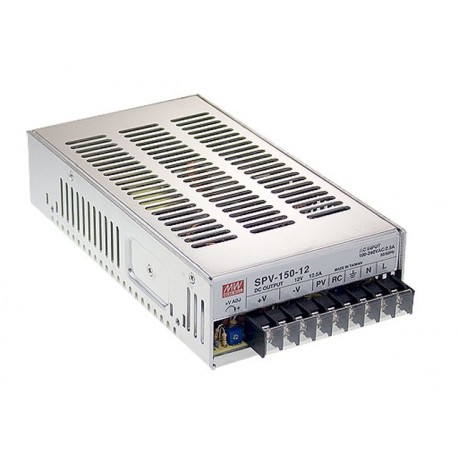

SPV-150-48 MEANWELL AC-DC Enclosed power supply, Output 48VDC / 3.125A, free air convection, Programmable ou..
$55.16USD
221 auf Lager
Wichtige Spezifikationen
Lüfter:Yes
Name:SPV-150-48
Format:Box
Serie:SPV-150
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Lüfter | Yes |
| Name | SPV-150-48 |
| Format | Box |
| Serie | SPV-150 |
| Genehmigungen | CE, UL |
| Leistung (W) | 150,00 |
| Subformato | Grid |
| Breite (mm) | 115.00 |
| Höhe (mm) | 50.00 |
| AC-Eingangsleistung Max. | 264,00 |
| Mindesteingangsleistung (AC): Mindestens | 88,00 |
| Anwendungen | Industrial, Telecommunications |
| Hersteller | MEAN WELL |
| Produktart | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Ausgangsspannung | 48,00 |
| Spitzenleistung (W) | One hundred fifty |
| Eingangsanschluss | Screw-Type |
| Eingangsfrequenz | 50 Hz, 60 Hz |
| Lang/Hintergrund | 215.00 |
| Lange Beschreibung | Switch mode Power supply.Format in case of grid.Range of universal Input88-264vac47-63Hz.Output voltage48vdc. Adjustable by potentiometer (41-52,8 Vcc).Output voltage programmable between 20% and 110% by external signal of 1 to 5.5 Vdc.Output intensity3,12 To. Range of output current 0-3,12According to the demand load.Factor Corrector, Power>0,94.Power:150W.Efficiency typical:83%.Remote on / off.Working temperature: from-20ºCup+65ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:215 x 115 x 50.3 years of warranty.Manufacturer: MEAN WELLThe series SPV are sources of alimentacíon with programmable output. They are designed to test applications during manufacture in order to apply different stresses during the production or regulate the power of engines of continuous or similar applications where we need to vary the supply voltage.The output voltage can be set between 20% and 120% of the nominal output voltage by an external signal of 1-5,5 Vdc. |
| Ausgangsanschluss | Screw-Type |
| Art des Eintrags CA | Single-phase |
| Garantie (Jahre) | 3,00 |
| Ursprungsland | China |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
Switch mode Power supply.
Produktdokumente
Datenblatt
Technische Spezifikationen und Leistungsdaten
Benutzerhandbuch
Installations- und Betriebsanleitung
