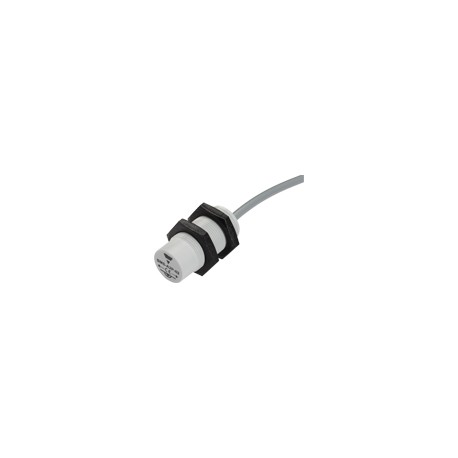

SMSA3P30

Safety Magnetic SensorsCylindrical Safety Magnetic SensorsSMSA2P30, SMSA3P30• Suitable for applications in safety category 3 in accordance with EN ISO13849-1:2008 when connected to appropriate safety devices• 2 NO outputs• Cable output connection• Cylindrical housing• Multiple flux codingProduct DescriptionOrdering KeySMS A2 P 30TheSMSAXP30 series is designed in conformitywith EN292-1,EN292-2,EN60204-1 and EN 1088. It is characterisedbymultiple flux coding and is suited forapplications up to safety Category 3, in accordance with EN ISO13849-1:2008 when connected to appro- priate safety devices.Safety magnetic sensorDiameter Housing material Contact typeType SelectionOutput Operating distanceSafety category Item code2 NO 16 mm 3SMSA2P302 NO 16 mm 3SMSA3P30Output SpecificationsGeneral SpecificationsOutputCategory 3(EN ISO13849-1:2008)2 NOOutput connectionCable(PVC, AWG 26,L = 2 m, 4 x 0,15 mm2)Contact ratingsMax Switching Voltage 100 VAC Max Switching Current 0,25 A Max Switching Power5 VAOperating distance ON 16 ± 5 mm Release distance OFF20 ± 6 mm Reset distance20 ± 6 mm Suitable magnetic unitSMSA2P30 CLSA2SMSA3P30 CLSA3Misalignment max ± 2 mmHousingDimensionsSMSA2P30 M18x1SMSA3P30 M30x1.5Material PBT + 30% glassWeightApprox. 70 gEnvironmentDegree of protection IP 67Operating temperature -25 ÷ +70 °C Storage temperature-25 ÷ +70 °CCE-marking YesSpecifications are subject to change without notice (12.07.13) 1
