SDR-960-24

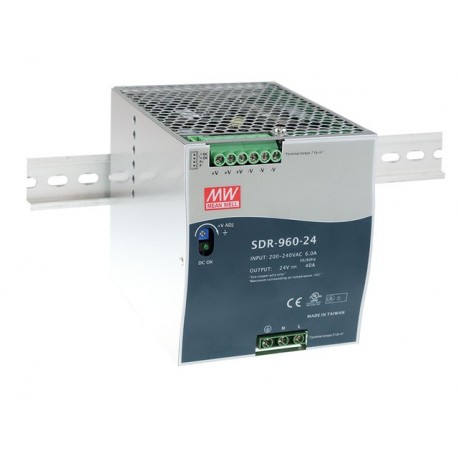

SDR-960-24 MEANWELL AC-DC Industrial DIN rail power supply, Output 24VDC / 40A, Metal casing, Ultra slim wid..
$234.66USD
91 auf Lager
Wichtige Spezifikationen
Name:SDR-960-24
Zustand:Recommended Model
Aktie:Yes
Alarm:Output OK
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name | SDR-960-24 |
| Zustand | Recommended Model |
| Aktie | Yes |
| Alarm | Output OK |
| Format | Din Rail |
| Serie | SDR-960 |
| Genehmigungen | CE, UL |
| Leistung (W) | 960,00 |
| Subformato | Narrow |
| Breite (mm) | 110.00 |
| Höhe (mm) | 125.20 |
| AC-Eingangsleistung Max. | 264,00 |
| Mindesteingangsleistung (AC): Mindestens | 180,00 |
| Anwendungen | Industrial, Telecommunications |
| Hersteller | MEAN WELL |
| Produktart | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Ausgangsspannung | 24,00 |
| Spitzenleistung (W) | One thousand two hundred forty eight |
| Eingangsanschluss | Screw-Type |
| Eingangsfrequenz | 50 Hz, 60 Hz |
| Lang/Hintergrund | 150.00 |
| Lange Beschreibung | Switching Power supply for Din Rail.Format to install on a Din Rail.Input range180-264vac47-63Hz.Output voltage24vdc.(Adjustable with potentiometer 24-28Vcc).Output intensity:40A.Range of output current 0-40A according to demand load.Intensity of peak: 52A. A maximum of 3 seconds. See the technical sheet for the repeat cycles.Power:960W.Peak Power:1248W. Maximum3 seconds. See the technical sheet for the repeat cycles.Factor Corrector, Power>0,95.Alarm output voltage to the correct DC-Ok.Paralelizable up to 4 units.Efficiency:94%.Working temperature: from-30up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Width x Height x depth):110 x 125,2 x 150mm.3 years of warranty.Manufacturer: MEANWELL.The series SDR are power sources, DIN rail, metal, single phase.With wide input range have a compact size, high efficiency up to 94%, and PFC function is active.Can be installed on DIN rail TS-35 / 7,5 or 15.Among its features we have a peak load of between 130-150%, signal using relay DC OK or function of load distribution in the models of 480/960W. |
| Ausgangsanschluss | Screw-Type |
| Art des Eintrags CA | Single-phase |
| Garantie (Jahre) | 3,00 |
| Ursprungsland | Taiwan |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
Switching Power supply for Din Rail.
