SCW03A-05

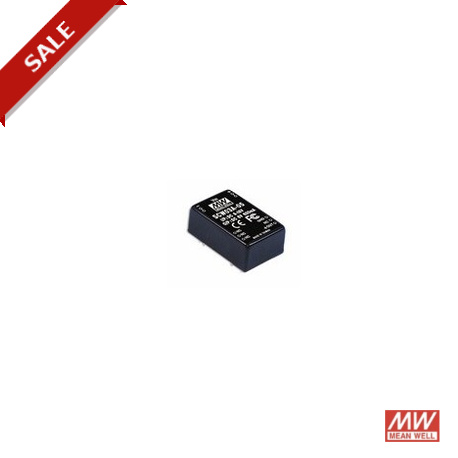

SCW03A-05 MEANWELL DC-DC Converter for PCB mount, Input 9-18VDC, Output 5VDC / 0.6A, DIP Through hole package
$0.00USD
3292 auf Lager
Wichtige Spezifikationen
Name (Details):SCW03A-05
Format (Details):For Printed Circuit
Serie (Details):SCW03
Genehmigungen (Details):EC, EAC
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name (Details) | SCW03A-05 |
| Format (Details) | For Printed Circuit |
| Serie (Details) | SCW03 |
| Genehmigungen (Details) | EC, EAC |
| Leistung (W) (Details) | 3,00 |
| Subformato (Details) | DIP |
| Breite (mm) (Details) | 20.30 |
| Höhe (mm) (Details) | 12.20 |
| Eingangsbereich (Details) | 2:1 |
| Bewerbungen (Details) | Industrial, Instrumentation, Telecommunications |
| Maximaler DC-Eingang (Details) | 18,00 |
| Mindest-Gleichstromeingang (Details) | 9,00 |
| Hersteller (Details) | MEAN WELL |
| Produkttyp (Details) | Dc/DC converters |
| Isolation (V) (Details) | 1.000,00 |
| Ausgangsspannung (Details) | 5,00 |
| Spitzenleistung (W) (Details) | Three |
| Eingangsanschluss (Details) | Pin |
| Längerer/Hintergrund (Details) | 31.80 |
| Lange Beschreibung (Details) | DC/DC converter to the printed circuit board in format DIP, input 2:1 and isolation of 1000Vcc.FormatDIPfor printed circuit boards.Input range9-18Vcc.Output voltage5vdc.Output intensity60-600mA.Power:3W.Efficiency typical:74%.Low noise and ripple 50mVp-p.Working temperature: from-40up+71ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:31,8 x 20,3 x 12,2.2 years of warranty.Manufacturer: MEAN WELL.The new series SCW03 are converters 3W isolated in format DIP input 2:1(4:1 Optional), without additional components and have a wide range of temperature operation, and isolation between input and output of 1000Vcc(3000Vcc optional). Are protected against overloads and short-circuits.CE certificate and EAC. |
| Ausgangsanschluss (Details) | Pin |
| Garantie (Jahre) (Details) | 2,00 |
| Herkunftsland (Details) | China |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
DC/DC converter to the printed circuit board in format DIP, input 2:1 and isolation of 1000Vcc.
Produktdokumente
Datenblatt
Technische Spezifikationen und Leistungsdaten
Benutzerhandbuch
Installations- und Betriebsanleitung
