RSD-300E-12

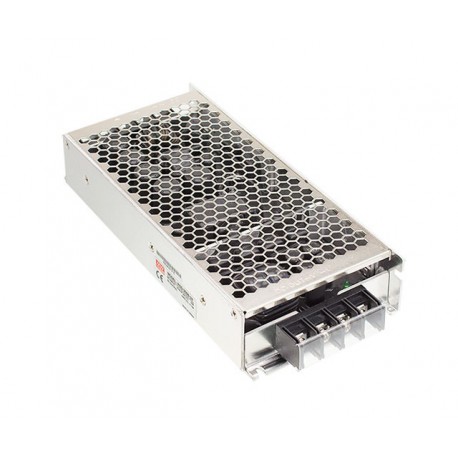

RSD-300E-12 MEANWELL DC-DC Enclosed converter, Input 21.6-50.4VDC, Output +12VDC / 22.5A, railway standard E..
$124.23USD
123 auf Lager
Wichtige Spezifikationen
Name:RSD-300E-12
Zustand:Recommended Model
Format:Box
Serie:RSD-300
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name | RSD-300E-12 |
| Zustand | Recommended Model |
| Format | Box |
| Serie | RSD-300 |
| Genehmigungen | EC |
| Leistung (W) | 300,00 |
| Subformato | IP20 |
| Breite (mm) | Ninety seven |
| Höhe (mm) | Forty |
| Eingangsbereich | 2:1 |
| Anwendungen | Railway, Industrial, Telecommunications |
| DC-Eingang Max. | 46,80 |
| DC-Eingangsleistung Min. | 25,20 |
| Hersteller | MEAN WELL |
| Produktart | Dc/DC converters |
| Isolation (V) | 4.000,00 |
| Ausgangsspannung | 12,00 |
| Spitzenleistung (W) | Three hundred |
| Bereich DC-Eingang | 25,2, 26,4, 28, 28,8, 30, 31,2, 32, 32,4, 33,6, 35, 36, 36,4, 38,4, 40, 43, 46,8 |
| Eingangsanschluss | Screw-Type |
| Lang/Hintergrund | Two hundred sixteen |
| Lange Beschreibung | Dc/DC converter rail is a regulated isolated output.Converter for railway applications,industrial or telecommunications.Input range25,2-for 46.8 Vdc(21,6-50,4 Vdc for 1 second). Range rail to 36V input.Output voltage12vdc.Output intensity25A.Power:300W.Isolation input-output 4000Vcc.Efficiency of the90%.Operating temperature from-40up+70 ° C(see the curve derived in the technical data sheet). 85 ° c for 10 minutes with ventilation by conduction.Dimensions (Length x Width x Height):216 x 97 x 40mm.3 years of warranty.Manufacturer: MEAN WELLIt is a converter designed for railway applications, industrial or telecommunications.Is certified with the regulations for railway EN50155 and EN45545-2 in front of the fire.Can operate up to 55C at full load and 70 ° C at 60% load or 70 ° C ambient temperature with ventilation by driving without losses. Also supports a temperature range of more demanding level rail Tx to 85ºC ambient temperature for 10 minutes with ventilation by driving on a metal surface.This converter semi-encapsulation has been designed for the most demanding applications at the level of vibration, temperature, and humidity. Has a low profile of only 40mm and uses only components prepared for high temperatures as for example capacitors of 105ºC.It has a low noise and ripple, and high efficiency and is protected against reverse polarity at the input. The inrush current is limited by a resistor in series with a MOSFET to reduce the peak starting current to reliably regardless of the ambient temperature.Its output is protected against short-circuits and overloads by limiting output current, this allows you to start loads with a high inrush. |
| Ausgangsanschluss | Screw-Type |
| Garantie (Jahre) | 3,00 |
| Ursprungsland | Taiwan |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
Dc/DC converter rail is a regulated isolated output.
