RSD-150B-5

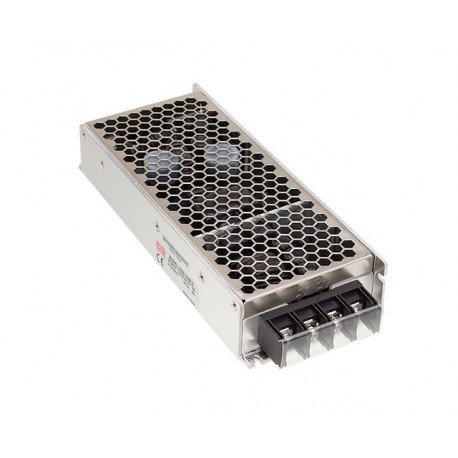

RSD-150B-5 MEANWELL DC-DC Enclosed converter, Input 14.4-33.6VDC, Output +5VDC / 30A, railway standard EN501..
$88.03USD
154 auf Lager
Wichtige Spezifikationen
Name:RSD-150B-5
Zustand:Recommended Model
Format:Box
Serie:RSD-150
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name | RSD-150B-5 |
| Zustand | Recommended Model |
| Format | Box |
| Serie | RSD-150 |
| Genehmigungen | EC |
| Leistung (W) | 150,00 |
| Subformato | IP20 |
| Breite (mm) | 77.00 |
| Höhe (mm) | 36.00 |
| Eingangsbereich | 2:1 |
| Anwendungen | Railway, Industrial, Telecommunications |
| DC-Eingang Max. | 31,20 |
| DC-Eingangsleistung Min. | 16,80 |
| Hersteller | MEAN WELL |
| Produktart | Dc/DC converters |
| Isolation (V) | 4.000,00 |
| Ausgangsspannung | 5,00 |
| Spitzenleistung (W) | One hundred fifty |
| Bereich DC-Eingang | 16,8, 18, 19, 20,4, 21, 21,6, 22,5, 24, 25,2, 26,4, 28, 28,8, 30, 31,2 |
| Eingangsanschluss | Screw-Type |
| Lang/Hintergrund | 189.00 |
| Lange Beschreibung | Dc/DC converter rail is a regulated isolated output.Converter for railway applications, industrial or telecommunications.Input range16,8-31,2 Vdc(14,4-33,6 Vdc for 1 second). Range rail to 24V input.Output voltage5vdc.Output intensity:30A.Power:150W.Isolation input-output 4000Vcc.Efficiency of the89%.Operating temperature from-40up+70 ° C(see the curve derived in the technical data sheet). 85 ° c for 10 minutes with ventilation by conduction.Dimensions (Length x Width x Height):189 x 77 x 36mm.3 years of warranty.Manufacturer: MEAN WELL.It is a converter designed for railway applications, industrial or telecommunications.Is certified with the regulations for railway EN50155 and EN45545-2 in front of the fire.Can operate up to 55C at full load and 70 ° C at 60% load or 70 ° C ambient temperature with ventilation by driving without losses. Also supports a temperature range of more demanding level rail Tx to 85ºC ambient temperature for 10 minutes with ventilation by driving on a metal surface.This converter semi-encapsulation has been designed for the most demanding applications at the level of vibration, temperature, and humidity. Has a low profile of only 36mm and uses only components prepared for high temperatures as for example capacitors of 105ºC.It has a low noise and ripple, and high efficiency and is protected against reverse polarity at the input. The inrush current is limited by a resistor in series with a MOSFET to reduce the peak starting current to reliably regardless of the ambient temperature.Its output is protected against short-circuits and overloads by limiting output current, this allows you to start loads with a high inrush. |
| Ausgangsanschluss | Screw-Type |
| Garantie (Jahre) | 3,00 |
| Ursprungsland | Taiwan |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
Dc/DC converter rail is a regulated isolated output.
