RPT-160C

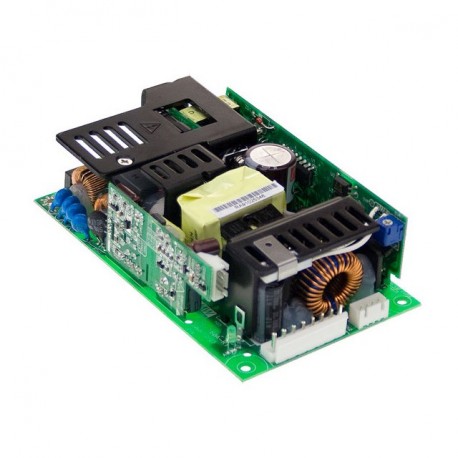

RPT-160C MEANWELL AC-DC Triple output Medical Open frame power supply, Output 5VDC / 14A +15VDC / 3.6A -15VD..
$60.92USD
211 auf Lager
Wichtige Spezifikationen
Name:RPT-160C
Zustand:New
Alarm:Powerfail, Output OK
Format:Open Format
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name | RPT-160C |
| Zustand | New |
| Alarm | Powerfail, Output OK |
| Format | Open Format |
| Serie | RPT-160 |
| Ausgang 1 | +5 |
| Ausgang 2 | +15 |
| Ausgang 3 | -15 |
| Genehmigungen | EC, EAC, EN60601 3rd Edition, UL |
| Leistung (W) | 99,00 |
| Subformato | 5"x3" |
| Breite (mm) | 76.2 |
| Höhe (mm) | 34.6 |
| AC-Eingangsleistung Max. | 264,00 |
| Mindesteingangsleistung (AC): Mindestens | 90,00 |
| Anwendungen | Industrial, Medical, Telecommunications |
| Hersteller | MEAN WELL |
| Produktart | Power supply AC/DC |
| Isolation (V) | 4.000,00 |
| Spitzenleistung (W) | One hundred forty three |
| Eingangsanschluss | Plug-in |
| Eingangsfrequenz | 50 Hz, 60 Hz |
| Lang/Hintergrund | One hundred twenty seven |
| Lange Beschreibung | Medical power supply in open format(Open-Frame).Range of universal input90-264vac47-63Hz.Outputs:-15vdc:Minimum intensity of output0.1 To.Maximum output current0,8Amp.+5vdc:Minimum intensity of output0.6 To.Maximum output currentNineAmps.+15vdc:Minimum intensity of output0.1 To.Maximum output current2,6Amps.Power:99WandOne hundred forty threeW with external fan.Source certified for medical applications2 xMOPP(the patient protection).Leakage current < 160µA.Factor corrector, power>0.93to 230vac at full load.Efficiency:84%.Working temperature: from-20up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:127 x 76.2 x 34,6.3 years of warranty.Manufacturer: MEAN WELL.The series RPT-160 power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP and protection between input and ground 1xMOPP.Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Ausgangsanschluss | Plug-in |
| Art des Eintrags CA | Single-phase |
| Garantie (Jahre) | 3,00 |
| Ursprungsland | China |
| Sie müssen mindestens laden | Yes |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
Medical power supply in open format(Open-Frame).
Produktdokumente
Datenblatt
Technische Spezifikationen und Leistungsdaten
Benutzerhandbuch
Installations- und Betriebsanleitung
