RPS-75-12

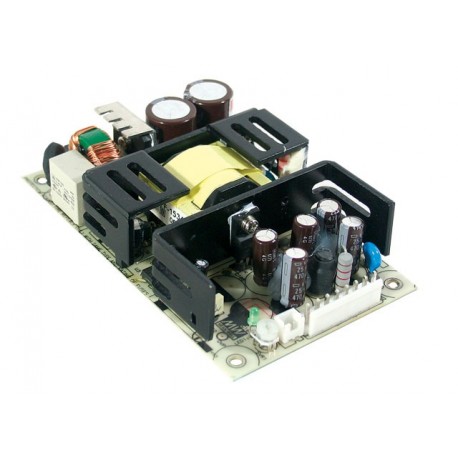

RPS-75-12 MEANWELL AC-DC Open frame Medical power supply, Output 12VDC / 6.3A, EN60601 2xMOPP, compact size ..
$17.72USD
608 auf Lager
Wichtige Spezifikationen
Name:RPS-75-12
Zustand:Recommended Model
Format:Open Format
Serie:RPS-75
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name | RPS-75-12 |
| Zustand | Recommended Model |
| Format | Open Format |
| Serie | RPS-75 |
| Genehmigungen | CE, UL |
| Leistung (W) | 75,60 |
| Subformato | 5"x3" |
| Breite (mm) | 76.20 |
| Höhe (mm) | 31.00 |
| AC-Eingangsleistung Max. | 264,00 |
| Mindesteingangsleistung (AC): Mindestens | 90,00 |
| Anwendungen | Industrial, Medical, Telecommunications |
| Hersteller | MEAN WELL |
| Produktart | Power supply AC/DC |
| Isolation (V) | 4.000,00 |
| Ausgangsspannung | 12,00 |
| Spitzenleistung (W) | 99.6 |
| Eingangsanschluss | Plug-in |
| Eingangsfrequenz | 50 Hz, 60 Hz |
| Lang/Hintergrund | 127.00 |
| Lange Beschreibung | Medical Power supply in Open Format(Open-Frame).Range of universal Input90-264vac47-63Hz.Output voltage12vdc.Adjustable by potentiometer (11,4-13,2 Vdc).Output intensity6.3 A. Range of output current 0-6,3 according To the demands of the load.Power:75,6 W.Source Certified for medical applications2 xMOPP(the patient protection).Leakage current < 100µA.Consumption without load<0,75 W.Efficiency:82%.Working temperature: from-20up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:127 x 76.2 x 31.3 years of warranty.Manufacturer: MEAN WELL.The series RPS-75 are power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP and protection between input and ground 1xMOPP.Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Ausgangsanschluss | Plug-in |
| Art des Eintrags CA | Single-phase |
| Garantie (Jahre) | 3,00 |
| Ursprungsland | China |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
Medical Power supply in Open Format(Open-Frame).
Produktdokumente
Datenblatt
Technische Spezifikationen und Leistungsdaten
Benutzerhandbuch
Installations- und Betriebsanleitung
