Vorrätig Top‑Produkt
PS-15-12

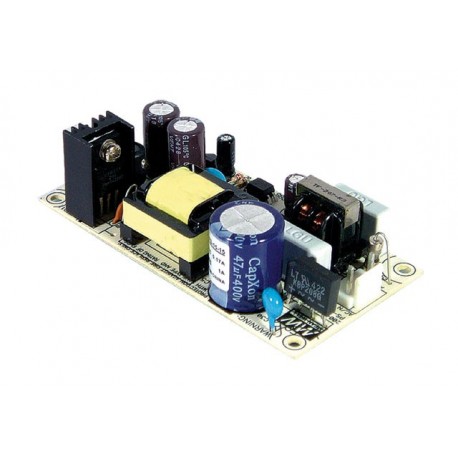

PS-15-12 MEANWELL AC-DC Single output Open frame power supply, Output 12VDC / 1.25A
$0.00USD
3769 auf Lager
Wichtige Spezifikationen
Name:PS-15-12
Zustand:Do not Use for New Designs
Format:Open Format
Serie:PS-15
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name | PS-15-12 |
| Zustand | Do not Use for New Designs |
| Format | Open Format |
| Serie | PS-15 |
| Genehmigungen | EC |
| Leistung (W) | 15,00 |
| Subformato | 4"x2" |
| Breite (mm) | 49.00 |
| Höhe (mm) | 25.00 |
| AC-Eingangsleistung Max. | 264,00 |
| Mindesteingangsleistung (AC): Mindestens | 85,00 |
| Anwendungen | Industrial, Telecommunications |
| Hersteller | MEAN WELL |
| Produktart | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Ausgangsspannung | 12,00 |
| Spitzenleistung (W) | Fifteen |
| Eingangsanschluss | Plug-in |
| Eingangsfrequenz | 50 Hz, 60 Hz |
| Lang/Hintergrund | 94.00 |
| Lange Beschreibung | Power supply in an Open Format(Open-Frame).Range of universal Input85-264vac47-63Hz.Output voltage12vdc.Output intensity1.25 To. Range of current output 0-1,25 To according to demand load.Power:15W.Efficiency typical:77%.Consumption without load<0.5 W.Working temperature: from-Tenup+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:94 x 49 x 25.2 years of warranty.Manufacturer: MEAN WELL.The series PS-15 is one of the most successful series of MEAN WELL, have had large sales volume for many years and has shown great reliability and robustness . It has been used in all kinds of industrial applications and telecommunications.It has a low noise and ripple, and a low leakage current.However, for new designs it is recommended to use the seriesEPS-15more compact, efficient and with best performance. |
| Ausgangsanschluss | Plug-in |
| Art des Eintrags CA | Single-phase |
| Garantie (Jahre) | 2,00 |
| Ursprungsland | China |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
Power supply in an Open Format(Open-Frame).
Produktdokumente
Datenblatt
Technische Spezifikationen und Leistungsdaten
Benutzerhandbuch
Installations- und Betriebsanleitung
