PLP-30-48

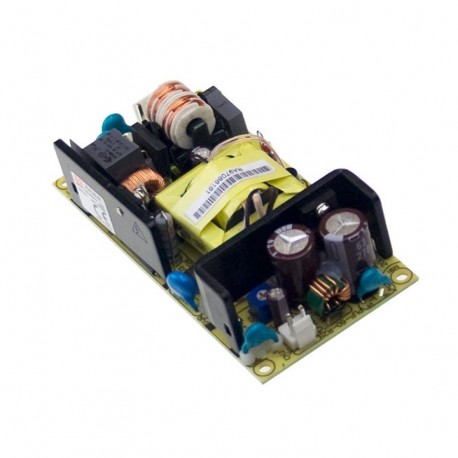

PLP-30-48 MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 48VDC / 0,63A, open frame, I/O wi..
$12.43USD
838 auf Lager
Wichtige Spezifikationen
Name:PLP-30-48
Format:Open Format
Serie:PLP-30
Genehmigungen:CCC, CE, UL
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name | PLP-30-48 |
| Format | Open Format |
| Serie | PLP-30 |
| Genehmigungen | CCC, CE, UL |
| Leistung (W) | 30,20 |
| Breite (mm) | 50.80 |
| Höhe (mm) | 26.60 |
| AC-Eingangsleistung Max. | 264,00 |
| Mindesteingangsleistung (AC): Mindestens | 90,00 |
| Anwendungen | Lighting |
| Hersteller | MEAN WELL |
| Produktart | LED Driver |
| Isolation (V) | 3.750,00 |
| Spitzenleistung (W) | 30.2 |
| Eingangsanschluss | Plug-in |
| Eingangsfrequenz | 50 Hz, 60 Hz |
| Lang/Hintergrund | 101.60 |
| Lange Beschreibung | LED driver.Specially designed to feed LED strips.Open format typePCBS.Input range90-264vac47-63Hz.Output in constant current630mA.Adjustable by external potentiometer (475-630mA).Range of output voltage with current mode constant36 to 48vdcaccording to demand load.Power:30,2 W.Efficiency typical:86.5 per cent.Potentiometer:This model incorporates 1 external potentiometer that allows us to regulate the maximum output current.Input class I with grounding.Factor corrector, power>0,9to 230vac at full load.Operating temperature range of caseTcfrom-30ºCup+70ºC.Dimensions (Length x Width x Height):101.6 x 50.8 x 26.6 per mm.2 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current. The output current can be adjusted byexternal potentiometerlocated in the plate of the source.With format, open PCB type. The series PLP is intended for applications of LED lighting. Its compact size and small, with high reliability at low cost. Are drivers of class I with grounding. Burn test at 100% load. |
| Ausgangsanschluss | Plug-in |
| Art des Eintrags CA | Single-phase |
| Garantie (Jahre) | 2,00 |
| Ursprungsland | China |
| Ausgangsstrom mA | 600, 650 |
| Intensität der minimalen Ausgangsleistung (mA) | 630,00 |
| Maximale Ausgangsintensität (mA) | 630,00 |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
LED driver.
