Vorrätig Top‑Produkt

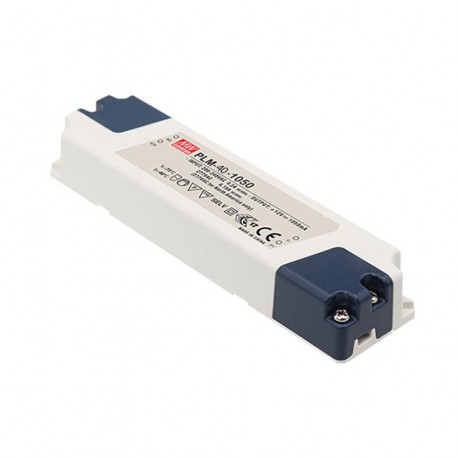

PLM-40-700
PLM-40-700 MEANWELL AC-DC Single output LED driver Constant Current (CC), Input range 110-295VAC, Output 0.7..
$6.37USD
1599 auf Lager
Wichtige Spezifikationen
Name:PLM-40-700
Zustand:Do not Use for New Designs
Aktie:Yes
Format:Box
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name | PLM-40-700 |
| Zustand | Do not Use for New Designs |
| Aktie | Yes |
| Format | Box |
| Serie | PLM-40 |
| Genehmigungen | CCC, CE, ENEC, UL |
| Leistung (W) | 38,50 per |
| Subformato | IP30 |
| Breite (mm) | 42.00 |
| Höhe (mm) | 24.00 |
| AC-Eingangsleistung Max. | 295,00 |
| Mindesteingangsleistung (AC): Mindestens | 110,00 |
| Anwendungen | Lighting |
| Hersteller | MEAN WELL |
| Produktart | LED Driver |
| Isolation (V) | 3.750,00 |
| Spitzenleistung (W) | 38.5 |
| Eingangsanschluss | Screw-Type |
| Eingangsfrequenz | 50 Hz, 60 Hz |
| Lang/Hintergrund | 175.00 |
| Lange Beschreibung | LED driver.Specially designed for powering LEDs directly in a steady stream.Format in plastic boxIP30.Input range110-295Vca47-63Hz.Output in constant current700mA.Range of output voltage with current mode constant29 to 57Vccaccording to demand load.Power:38,5 W.Efficiency typical:87%.Input class II without grounding.Factor corrector, power>0.95to 230vac at full load.Consumption without load<0.5 W.Operating temperature range of caseTcfrom-30ºCup+45ºC.Dimensions (Length x Width x Height):175 x 42 x 24mm.2 years of warranty.Manufacturer: MEAN WELL.The serial PLM are LED drivers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.With plastic housing, the serial PLM has a small and compact size. Connection is by screw and protection, anti-pull, without the need of put terminals to make the connections. With ventilation for free circulation of air. With active PFC and high reliability at low cost. Indicated for interior applications, lighting, office, LED lighting and signalling mobile (roads, screens). Complies with all regulations of lighting. |
| Ausgangsanschluss | Screw-Type |
| Art des Eintrags CA | Single-phase |
| Garantie (Jahre) | 2,00 |
| Ursprungsland | China |
| Ausgangsstrom mA | Seven hundred |
| Intensität der minimalen Ausgangsleistung (mA) | 700,00 |
| Maximale Ausgangsintensität (mA) | 700,00 |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
LED driver.
