Vorrätig Top‑Produkt
HRPG-200-15

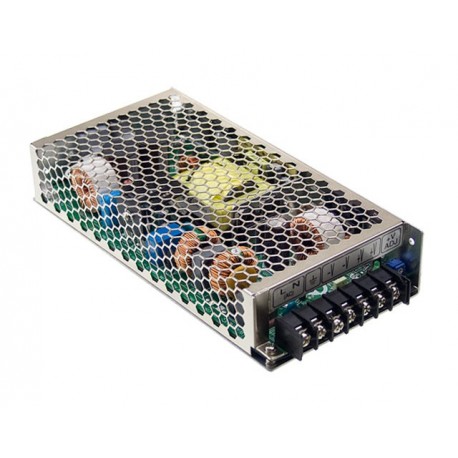

HRPG-200-15 MEANWELL AC-DC Single output enclosed power supply, Output 15VDC / 13.4A, 1U low profile, free a..
$68.95USD
195 auf Lager
Wichtige Spezifikationen
Name:HRPG-200-15
Format:Box
Serie:HRPG-200
Genehmigungen:CE, UL
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name | HRPG-200-15 |
| Format | Box |
| Serie | HRPG-200 |
| Genehmigungen | CE, UL |
| Leistung (W) | 201,00 |
| Subformato | Grid |
| Breite (mm) | 98.00 |
| Höhe (mm) | 38.00 |
| AC-Eingangsleistung Max. | 264,00 |
| Mindesteingangsleistung (AC): Mindestens | 85,00 |
| Anwendungen | Industrial, Telecommunications |
| Hersteller | MEAN WELL |
| Produktart | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Ausgangsspannung | 15,00 |
| Spitzenleistung (W) | Two hundred one |
| Eingangsanschluss | Screw-Type |
| Eingangsfrequenz | 50 Hz, 60 Hz |
| Lang/Hintergrund | 199.00 |
| Lange Beschreibung | Switch mode power supply.Format in case of grid.Range of universal Input85-264vac47-63Hz.Output voltage15vdc. Adjustable by potentiometer (13,5-18vdc).Output intensity13.4 To. Range of output current 0-13,4 according To the demand load.Power:201W.Efficiency typical:88%.Supports peak input voltage of 300Vca for 5 seconds.Factor corrector, power>0,95to 230vac and full load.Remote on / off.Auxiliary output Stand-by 5V 0.3 A.Consumption without load <0.5 W.Function of sensing to compensate the voltage drop in the cables.Working temperature: from-40up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:199 x 98 x 38.5 years of warranty.Manufacturer: MEAN WELL.The series HRPG are the sources of most high-end format box MEAN WELL. Are designed for demanding applications.Support input voltages of 300Vca for 5 seconds and use components of the highest reliability as the electrolytic capacitors of 105ºC.The protection against over loads is for current limiting, constant current, and can reduce stress by up to 50% of its nominal value and keeping the output intensity, this serves to start heavy loads such as motors or other inductive loads or capacitive. |
| Ausgangsanschluss | Screw-Type |
| Art des Eintrags CA | Single-phase |
| Garantie (Jahre) | 5,00 |
| Ursprungsland | China |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
Switch mode power supply.
Produktdokumente
Datenblatt
Technische Spezifikationen und Leistungsdaten
Benutzerhandbuch
Installations- und Betriebsanleitung
