HRP-75-12

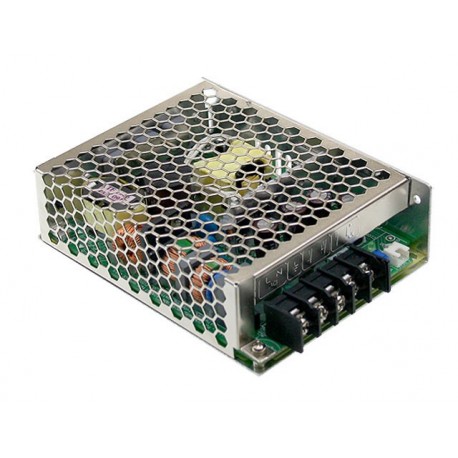

HRP-75-12 MEANWELL AC-DC Single output enclosed power supply, Output 12VDC / 6.3A, 1U low profile, free air ..
$35.55USD
323 auf Lager
Wichtige Spezifikationen
Name:HRP-75-12
Format:Box
Serie:HRP-75
Genehmigungen:CE, UL
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name | HRP-75-12 |
| Format | Box |
| Serie | HRP-75 |
| Genehmigungen | CE, UL |
| Leistung (W) | 75,60 |
| Subformato | Grid |
| Breite (mm) | 98.00 |
| Höhe (mm) | 38.00 |
| AC-Eingangsleistung Max. | 264,00 |
| Mindesteingangsleistung (AC): Mindestens | 85,00 |
| Anwendungen | Industrial, Telecommunications |
| Hersteller | MEAN WELL |
| Produktart | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Ausgangsspannung | 12,00 |
| Spitzenleistung (W) | 75.6 |
| Eingangsanschluss | Screw-Type |
| Eingangsfrequenz | 50 Hz, 60 Hz |
| Lang/Hintergrund | 129.00 |
| Lange Beschreibung | Switch mode Power supply.Format in Box Grid.Range of universal Input85-264vac47-63Hz.Output voltage12vdc. Adjustable by potentiometer (11-13,8 v Dc).Output intensity6.3 A. Range of output current 0-6,3 according To the demands of the load.Factor Corrector, Power>0,9.Power:75,6 W.Remote on / off.Consumption without load <0.5 W.Efficiency typical:87%.Working temperature: from-40ºCup+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:129 x 98 x 38.5 years warranty.Manufacturer: MEAN WELL.The series HRP are the sources of most high-end format box MEAN WELL. Are designed for demanding applications.Support input voltages of 300Vca for 5 seconds and use components of the highest reliability as the electrolytic capacitors of 105ºC.Can be turned on and off remotely and have a consumption without load <0.5 W.The protection against over loads is for current limiting, constant current, and can reduce stress by up to 50% of its nominal value and keeping the output intensity, this serves to start heavy loads such as motors or other inductive loads or capacitive. |
| Ausgangsanschluss | Screw-Type |
| Art des Eintrags CA | Single-phase |
| Garantie (Jahre) | 5,00 |
| Ursprungsland | China |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
Switch mode Power supply.
Produktdokumente
Datenblatt
Technische Spezifikationen und Leistungsdaten
Benutzerhandbuch
Installations- und Betriebsanleitung
