HLG-480H-24

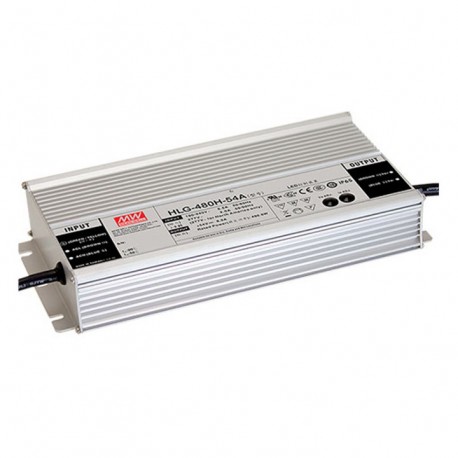

HLG-480H-24 MEANWELL AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC, Output 24VDC / 20A, ..
$0.00USD
3088 auf Lager
Wichtige Spezifikationen
Name:HLG-480H-24
Zustand:New
Aktie:Yes
Format:Box
Lieferanteninformation
MEANWELL
Produkte: 6448
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| Name | HLG-480H-24 |
| Zustand | New |
| Aktie | Yes |
| Format | Box |
| Serie | HLG-480H-V |
| Genehmigungen | CCC, CE, EAC, ENEC, KCC, RCM, UL |
| Leistung (W) | 480,00 |
| Subformato | IP67 |
| Breite (mm) | 125.00 |
| Höhe (mm) | 43.80 |
| AC-Eingangsleistung Max. | 305,00 |
| Mindesteingangsleistung (AC): Mindestens | 90,00 |
| Anwendungen | Lighting |
| Hersteller | MEAN WELL |
| Produktart | LED Driver |
| Isolation (V) | 3.750,00 |
| Ausgangsspannung | 24,00 |
| Spitzenleistung (W) | Four hundred eighty |
| Eingangsanschluss | Cable |
| Eingangsfrequenz | 50 Hz, 60 Hz |
| Lang/Hintergrund | 262.00 |
| Lange Beschreibung | LED driver.Specially designed to feed LED strips.Format in metal box sealedIP67.Input range90-305Vca47-63Hz.Output voltage24vdc.Output intensity20A. Range of output current 0-20A according to demand load.Power:480W.Efficiency typical:94%.Input class I with grounding.Factor corrector, power>0.97to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+90ºC.Dimensions (Length x Width x Height):262 x 125 x 43.8 mm7 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with LED strips or LED bulbs, which are fed at constant voltage. Working mode constant voltage giving a fixed voltage of 24V if the load is powered at constant voltage and does not overcome the maximum output power.The series HLG are LED drivers, class I grounded.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.With metal housing, waterproof to IP67. The series HLG has a high efficiency designed for applications of public lighting, architectural, exterior, interior or any lighting application LED needs a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US. Suitable for LED lighting or LED displays. Complies with the requirements of security at the global level for lighting. |
| Ausgangsanschluss | Cable |
| Art des Eintrags CA | Single-phase |
| Garantie (Jahre) | 7,00 |
| Ursprungsland | Taiwan |
Produktbeschreibung
More details
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Technische Details
LED driver.
