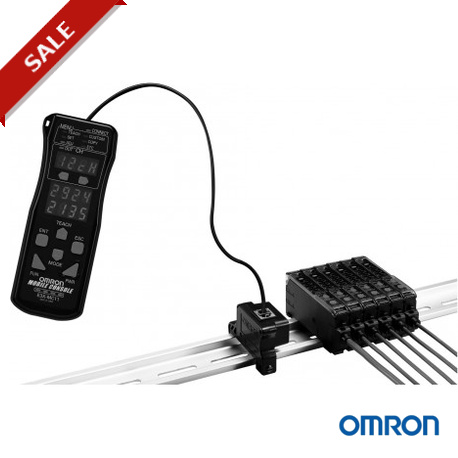

E3X-DA8-S

Digital Fiber AmplifierE3X-DA-NTruly ultimate fiber amplifierin pursuit of "user friendliness" and "high performance"UL991** UL-listed including UL991 tests/evaluations Applicable standard: UL3121-1 Standards for additional tests/evaluations for applications: UL991, SEMI S2-0200FeaturesReducing power line wiring meaningSuper digital display by use of the Autospace is saved. New design for easierPower Control (APC) circuitIndustry Firstmaintenance.Industry First Patent pendingThe incident level of LEDs used in sensors is prone to deteriorateThe connector type that uses the wire-saving connector sup- plies power to the single-conductor slave connectors via the three-conductor master connector. Hence, the following three has been made possible.1. Wiring is much simpler.2. Relay connectors are not required meaning that space is used more efficiently and costs are reduced.3. Simple inventory control because of no differentiation betweenmaster and slave in the amplifier section.with time and as a result, detection becomes unstable.Using the APC (auto power control) circuit for the first time as the fiber sensor, the E3X-DA-N series has no digital value variations, realizing severe detection.This makes the E3X-DA-N ideal for applications where a high de- gree of sensitivity is required, such as detecting crystal glass.Incident level3000New Connector DesignUp to 16 Amplifierscan be connected together.Conventional Digital Fiber AmplifiersThresholdDetection becomes unstableTimeIncident level3000Master ConnectorOptical commu- nicationsPower supply pinSlave ConnectorE3X-DA-N SeriesThresholdStable detectionTimeE3X-DA-NA-419
