Vorrätig Top‑Produkt
7ML5440-0AA00-1BA2

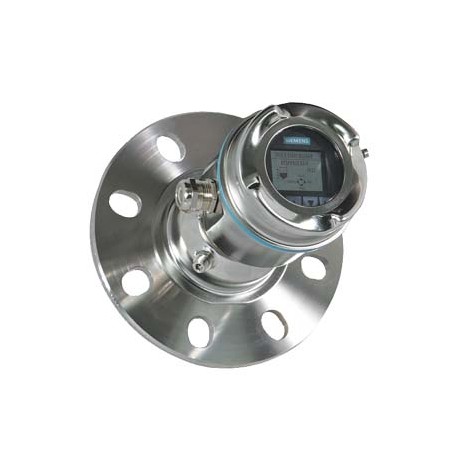

7ML5440-0AA00-1BA2 SIEMENS SITRANS LR560: A 2-wire, 78 GHz FMCW radar level transmitter for continuous monit..
$0.00USD
4716 auf Lager
Wichtige Spezifikationen
:VersionClassificationeClass5.127-20-05-05eClass627-20-05-05eClass7.127-20-05-05eClass827-20-05-05eClass927-20-05-05eClass9.127-20-05-05
EAN:Not available
UPC:Not available
eClass:5.1
Lieferanteninformation
SIEMENS
Produkte: 367174
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| VersionClassificationeClass5.127-20-05-05eClass627-20-05-05eClass7.127-20-05-05eClass827-20-05-05eClass927-20-05-05eClass9.127-20-05-05 | |
| EAN | Not available |
| UPC | Not available |
| eClass | 5.1 |
| Preisgruppe | 8L2 |
| Metallfaktor | None |
| Produktgruppe | 4716 |
| Produktklasse | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Mengeneinheit | 1 Piece |
| Warencode | 90261029 |
| Produktfamilie | Not available |
| Nettogewicht (kg) | 6,000 Kg |
| Ursprungsland | Canada |
| LKZ_FDB/ Katalog-ID | FI01-4 |
| Verpackungsmenge | 1 |
| Verpackungsabmessungen | Not available |
| Produktbeschreibung | SITRANS LR560: A 2-wire, 78 GHz FMCW radar level transmitter for continuous monitoring of solids and liquids to a range of 100 m (329ft) Order hand programmer separately! Measurement and process temperature range: 40m (131 ft) max range, -40 C degrees to +100 C degrees Process connection: Universal flat-faced flange fits ANSI/DIN/JIS flanges: 3" / 80 mm, 304 stainless steel Enclosure (with cable inlet): Stainless Steel, 1 X 1/2" NPT . Label: Sitrans LR560 Pressure Rating: 3 bar g (40 psi g) maximum Output/communication: PROFIBUS PA Approvals: General purpose, FM, CSA US/C, Industry Canada, FCC, CE, RED, RCM Local display interface: With LDI (local display interface) |
| Produktlebenszyklus (PLM) | PM300:Active Product |
| Exportkontrollbestimmungen | ECCN : 3A991X / AL : N |
| Standardlieferzeit ab Werk | 14 Day/Days |
| Zuschlag für Rohstoffe | None |
| Verpackungsgröße (Maßeinheit) | Not available |
| Produktabmessungen (B x L x H) | Not available |
| Artikelnummer (Marktnummer) | 7ML5440-0AA00-1BA2 |
| WEEE (2012/19/EU) Rücknahmepflicht | Yes |
| Einhaltung der Stoffbeschränkungen gemäß der RoHS-Richtlinie | Since: 10.01.2003 |
| REACH Art. 33 Informationspflicht gemäß der aktuellen Kandidatenliste | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Produktbeschreibung
SITRANS LR560 Recessed Lens Radar Level Transmitter - continuous, non-contact measurement, 100 m (328 ft) range, for general applications with solids. Measuring range and process temperature: 40 m max
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Produktdokumente
Datenblatt
Technische Spezifikationen und Leistungsdaten
Benutzerhandbuch
Installations- und Betriebsanleitung
