Vorrätig Top‑Produkt
7MH7562-4AA

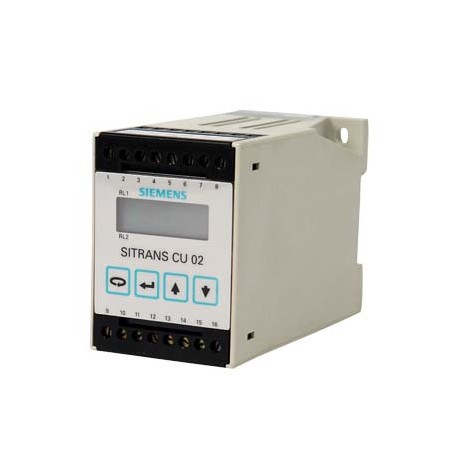

7MH7562-4AA SIEMENS Sitrans CU 02: Control Unit Alarm control unit for use with Sitrans AS 100 acoustic sens..
$0.00USD
4478 auf Lager
Wichtige Spezifikationen
:VersionClassificationeClass5.127-20-14-01eClass627-20-14-01eClass7.127-20-14-01eClass827-20-14-01eClass927-20-14-01eClass9.127-20-14-01
EAN:4019169849494
UPC:Not available
eClass:5.1
Lieferanteninformation
SIEMENS
Produkte: 367174
Versand in der Regel innerhalb von 2-3 Werktagen
Qualität garantiert
Schneller Versand
Technischer Support
Technische Spezifikationen
| Parameter | Wert |
|---|---|
| VersionClassificationeClass5.127-20-14-01eClass627-20-14-01eClass7.127-20-14-01eClass827-20-14-01eClass927-20-14-01eClass9.127-20-14-01 | |
| EAN | 4019169849494 |
| UPC | Not available |
| eClass | 5.1 |
| Preisgruppe | 8S1 |
| Metallfaktor | None |
| Produktgruppe | 4713 |
| Produktklasse | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Mengeneinheit | 1 Piece |
| Warencode | 90318080 |
| Produktfamilie | Not available |
| Nettogewicht (kg) | 0,453 Kg |
| Ursprungsland | Canada |
| LKZ_FDB/ Katalog-ID | FI01-6 |
| Verpackungsmenge | 1 |
| Verpackungsabmessungen | 149000,00 x 182000,00 x 99000,00 |
| Produktbeschreibung | Sitrans CU 02: Control Unit Alarm control unit for use with Sitrans AS 100 acoustic sensor. Contains two fully programmable, independent relays for alarm or control, as well as 4-20mA output. Operator interface consists of 4 push button keys and multi- field LCD. Input voltage: 230 V AC Enclosure: Standard DIN Rail Approvals: CSA,CE,RCM,EAC,KCC |
| Produktlebenszyklus (PLM) | PM300:Active Product |
| Exportkontrollbestimmungen | ECCN : EAR99I / AL : N |
| Standardlieferzeit ab Werk | 1 Day/Days |
| Zuschlag für Rohstoffe | None |
| Verpackungsgröße (Maßeinheit) | MM |
| Produktabmessungen (B x L x H) | Not available |
| Artikelnummer (Marktnummer) | 7MH7562-4AA |
| WEEE (2012/19/EU) Rücknahmepflicht | No |
| Einhaltung der Stoffbeschränkungen gemäß der RoHS-Richtlinie | Since: 20.07.2017 |
| REACH Art. 33 Informationspflicht gemäß der aktuellen Kandidatenliste | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Produktbeschreibung
SITRANS CU02 Control Unit: Set point-based alarm controller, used with the AS100 acoustic sensor. Power supply: 230 V.c.a. Housing: Standard. Approvals: Ordinary Locations/General Purpose (Non-Ex), CC
Hauptmerkmale
- Qualität in Industrieklasse
- RoHS-konform
- CE-zertifiziert
- 1‑Jahresgarantie
Produktdokumente
Datenblatt
Technische Spezifikationen und Leistungsdaten
Benutzerhandbuch
Installations- und Betriebsanleitung
